H-MG8i Fuel-efficient 6kW Marine Generator for small boats

6kW Marine Generator for small boats smart design facilitates easy access to maintenance points, ensuring hassle-free servicing and reducing downtime, so you can stay on the water with confidence. Inverter technology saving fuel by about 30% indicates a focus on fuel efficiency, reducing both operating costs and environmental impact. Elevate your maritime adventures with the Fuel-efficient 6kW Marine Generator , where power meets efficiency, and sustainability marries performance. Unlock a new realm of boating possibilities and sail into the future of marine power with confidence.

CONTACT US DOWNLOAD
  • description
  • message to us
  • FAQ
  • DOWNLOAD

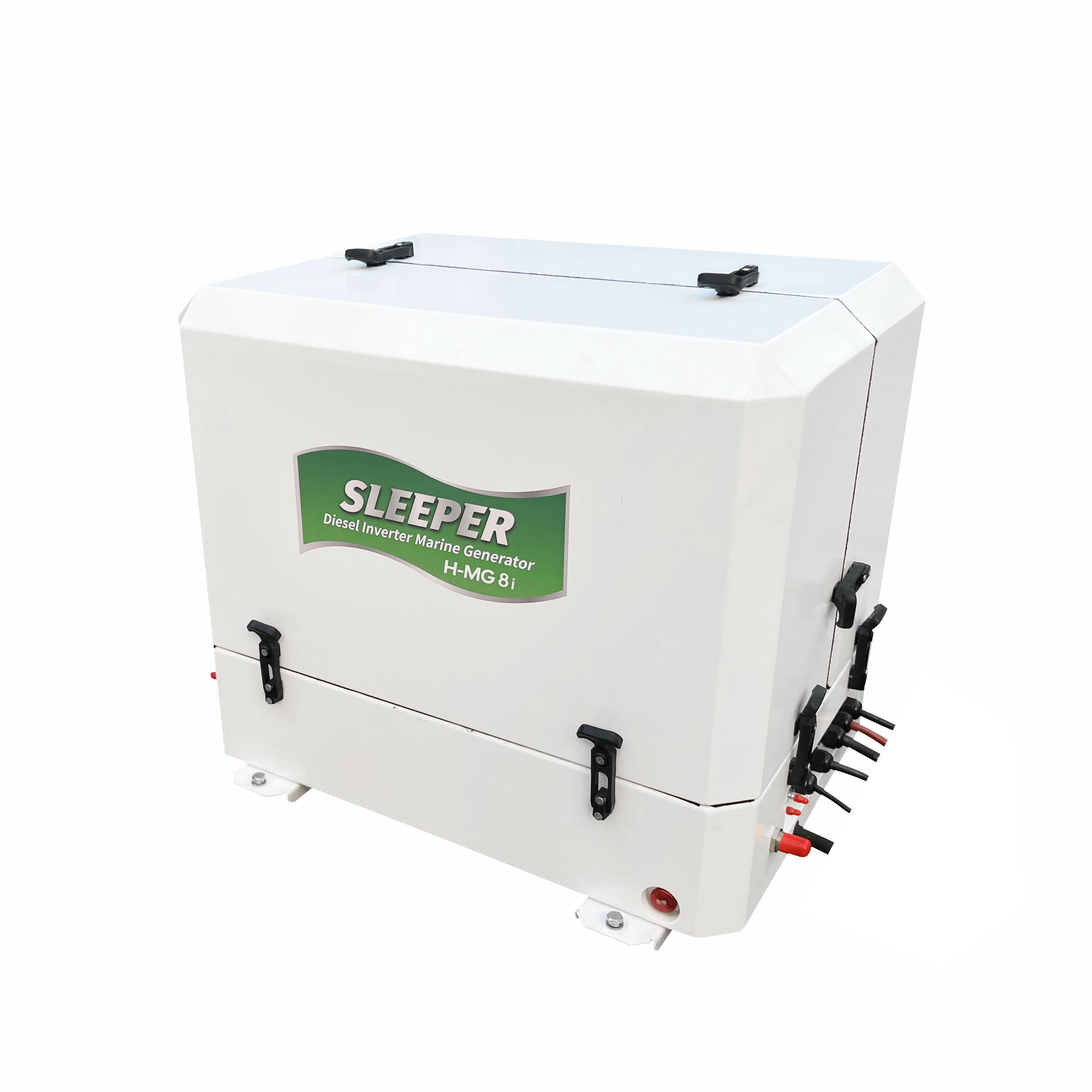

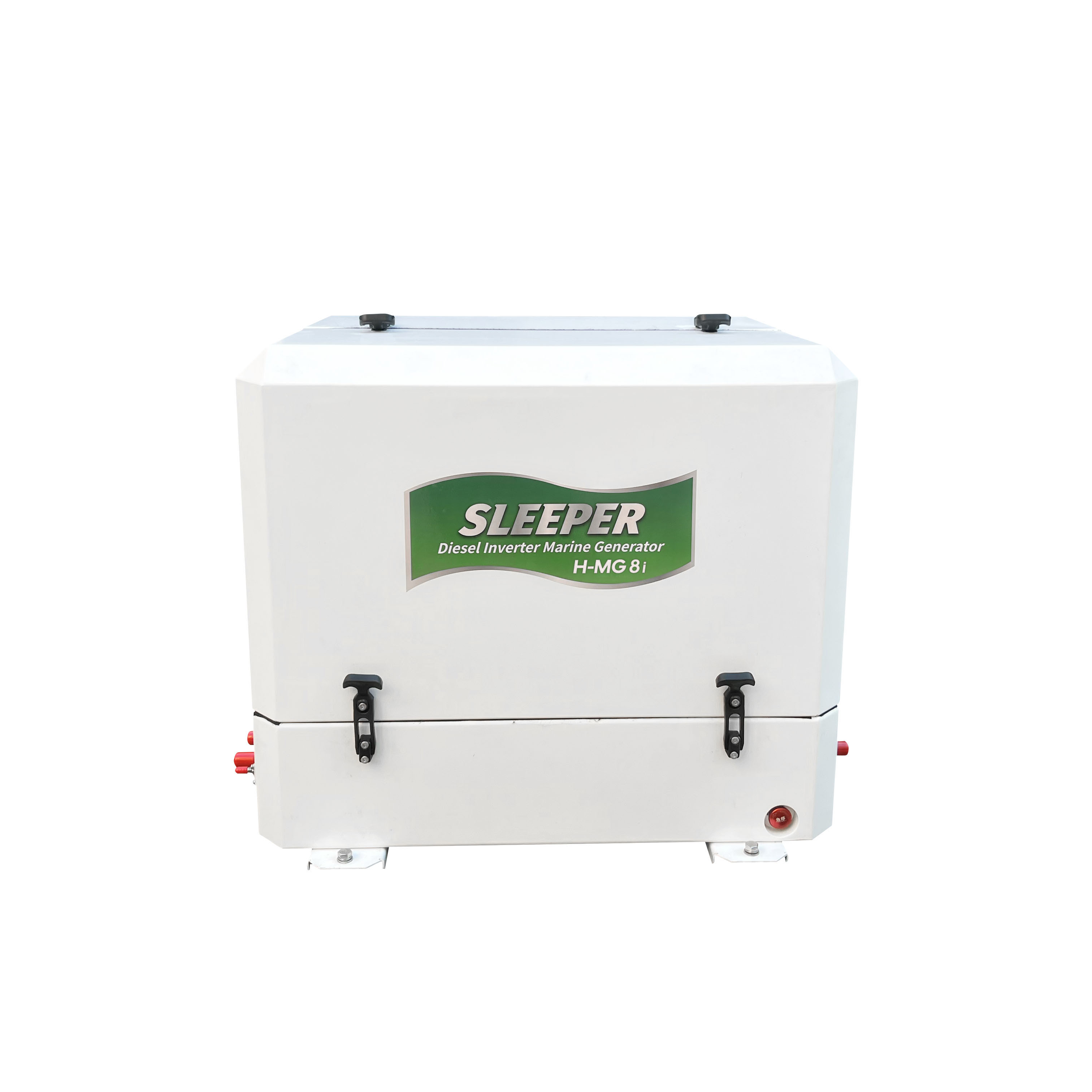

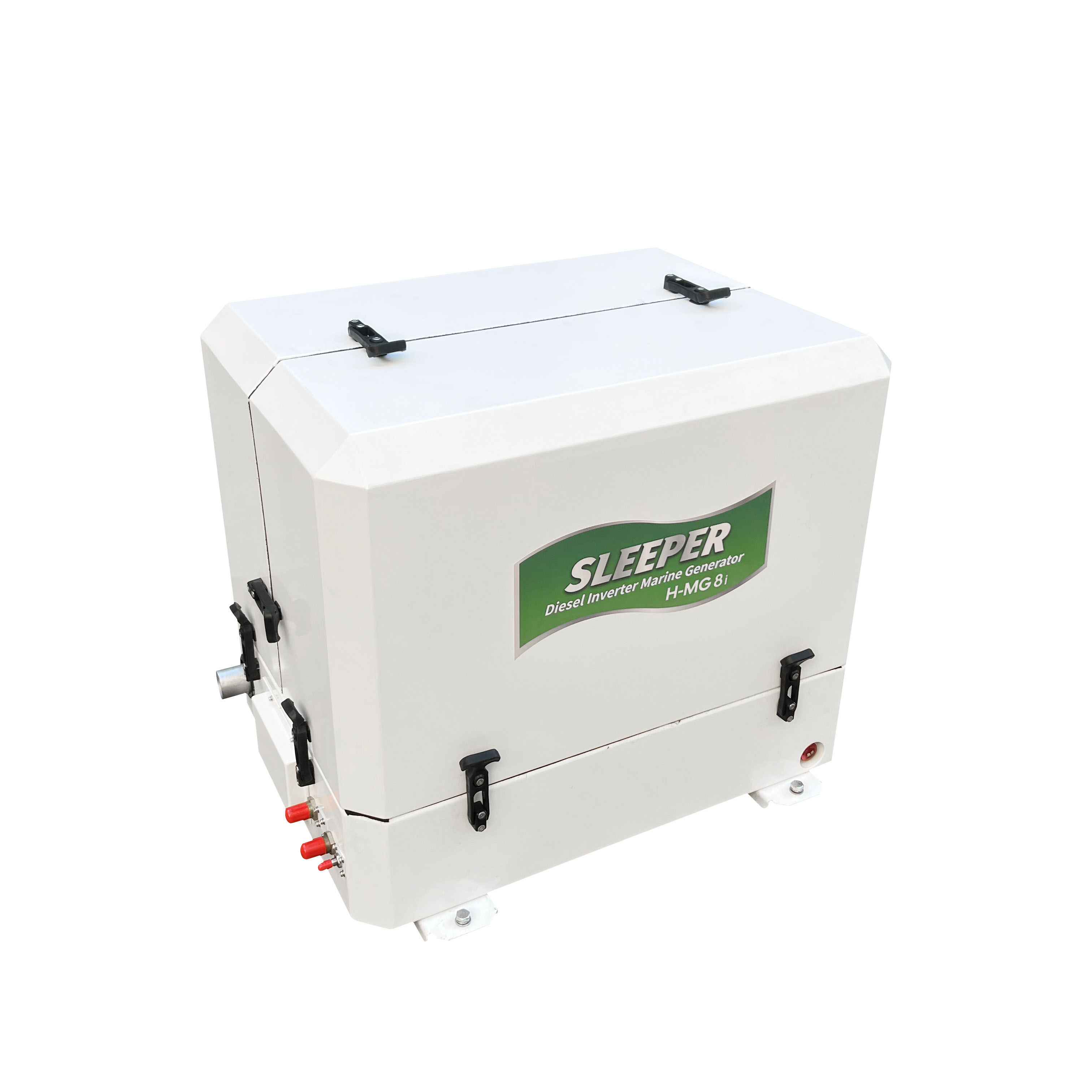

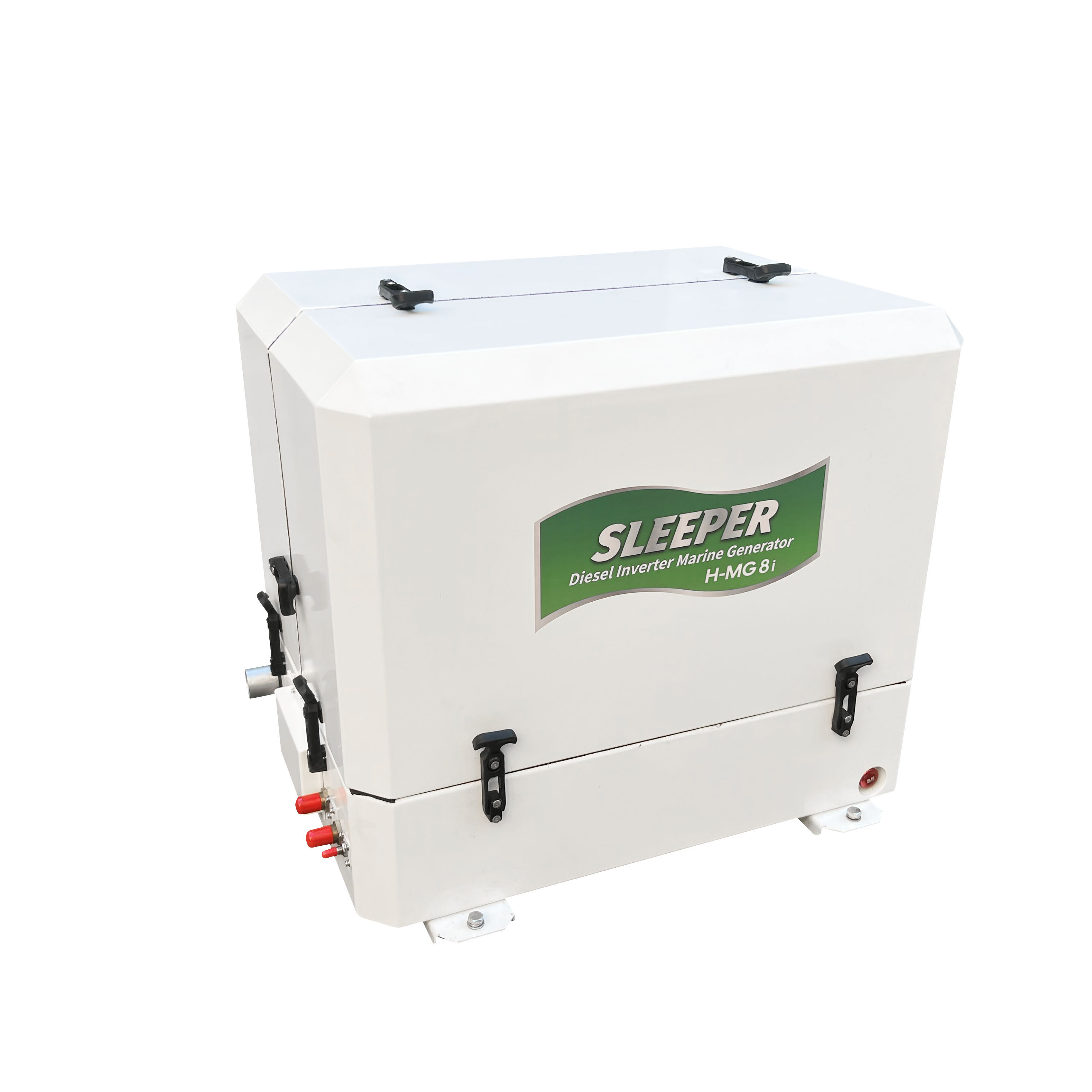

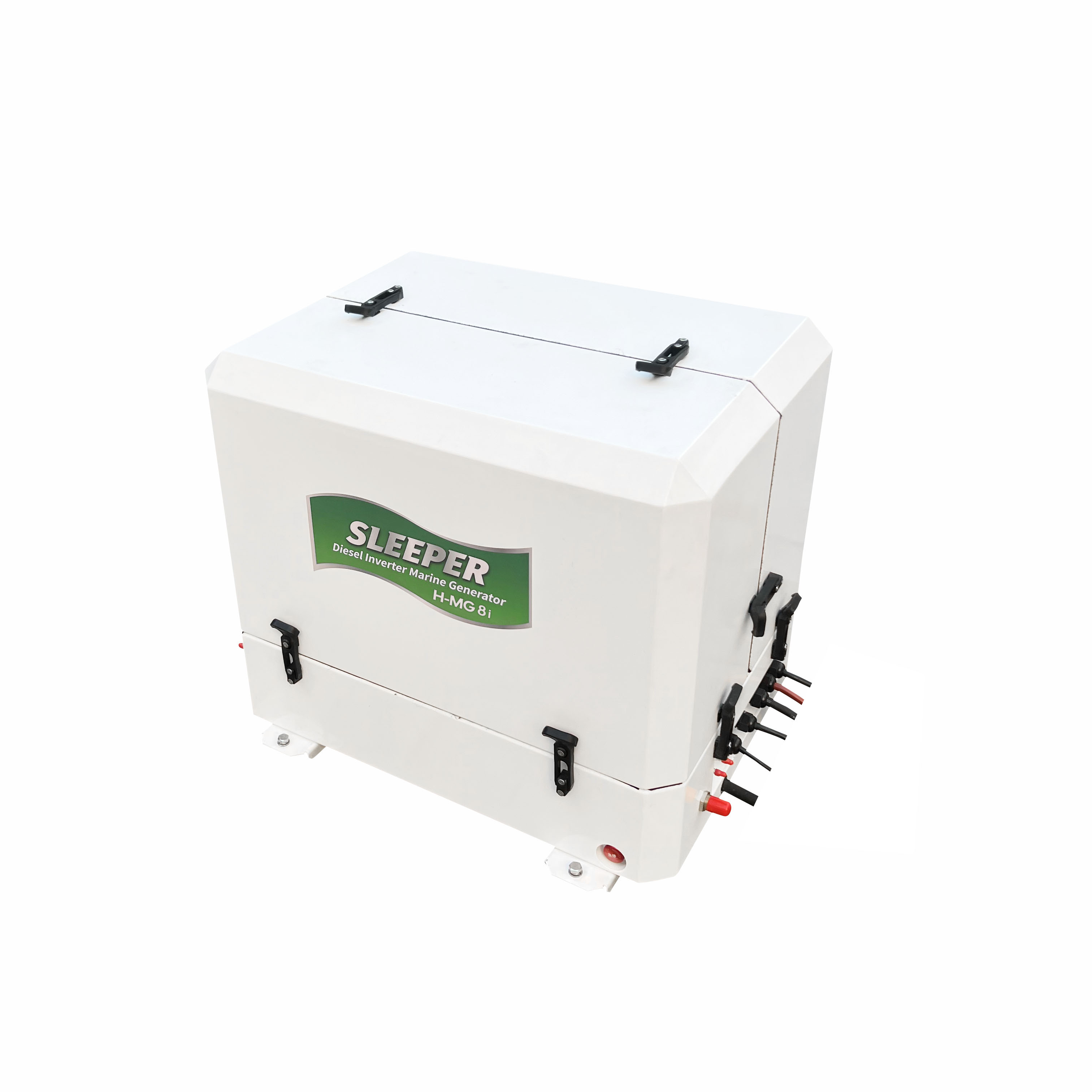

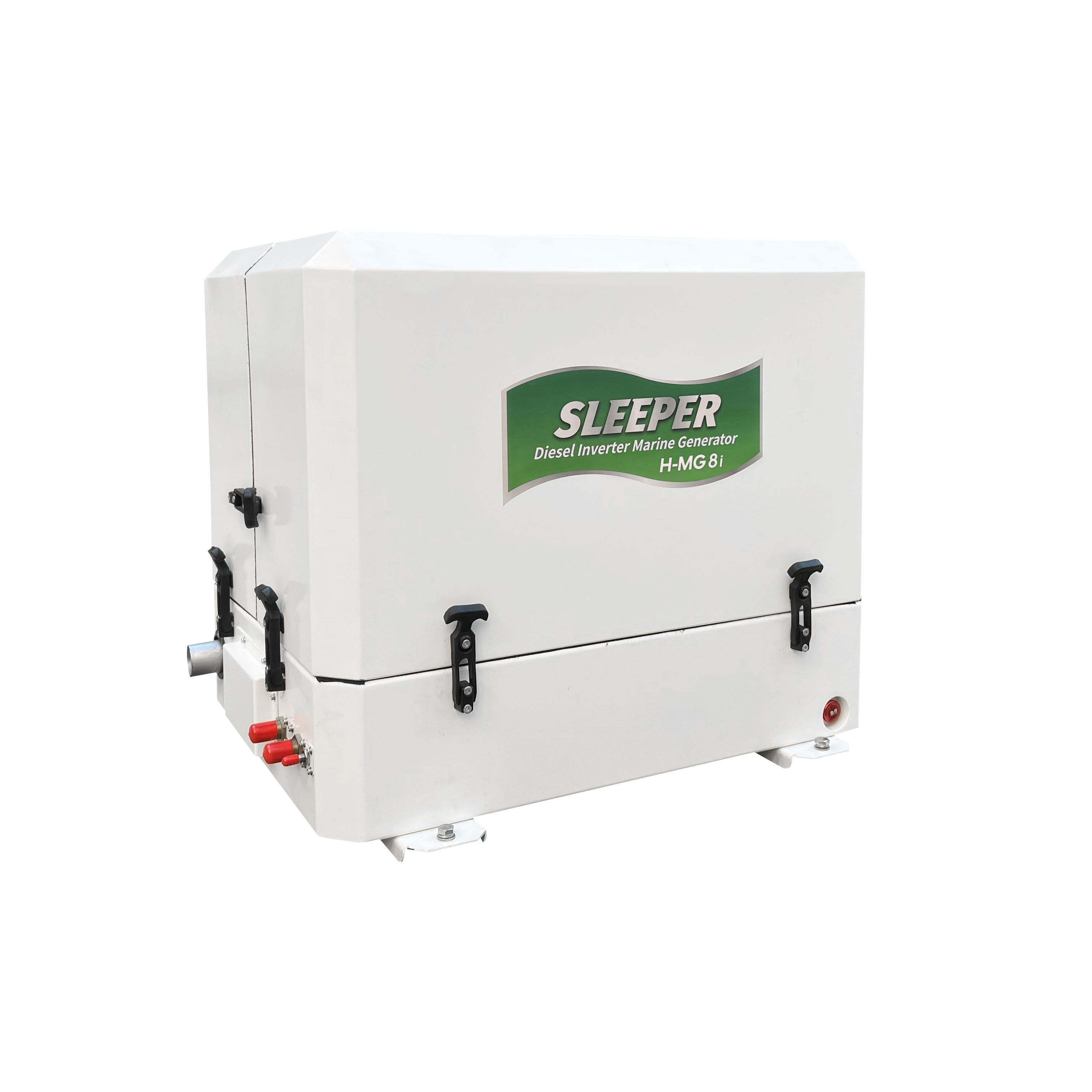

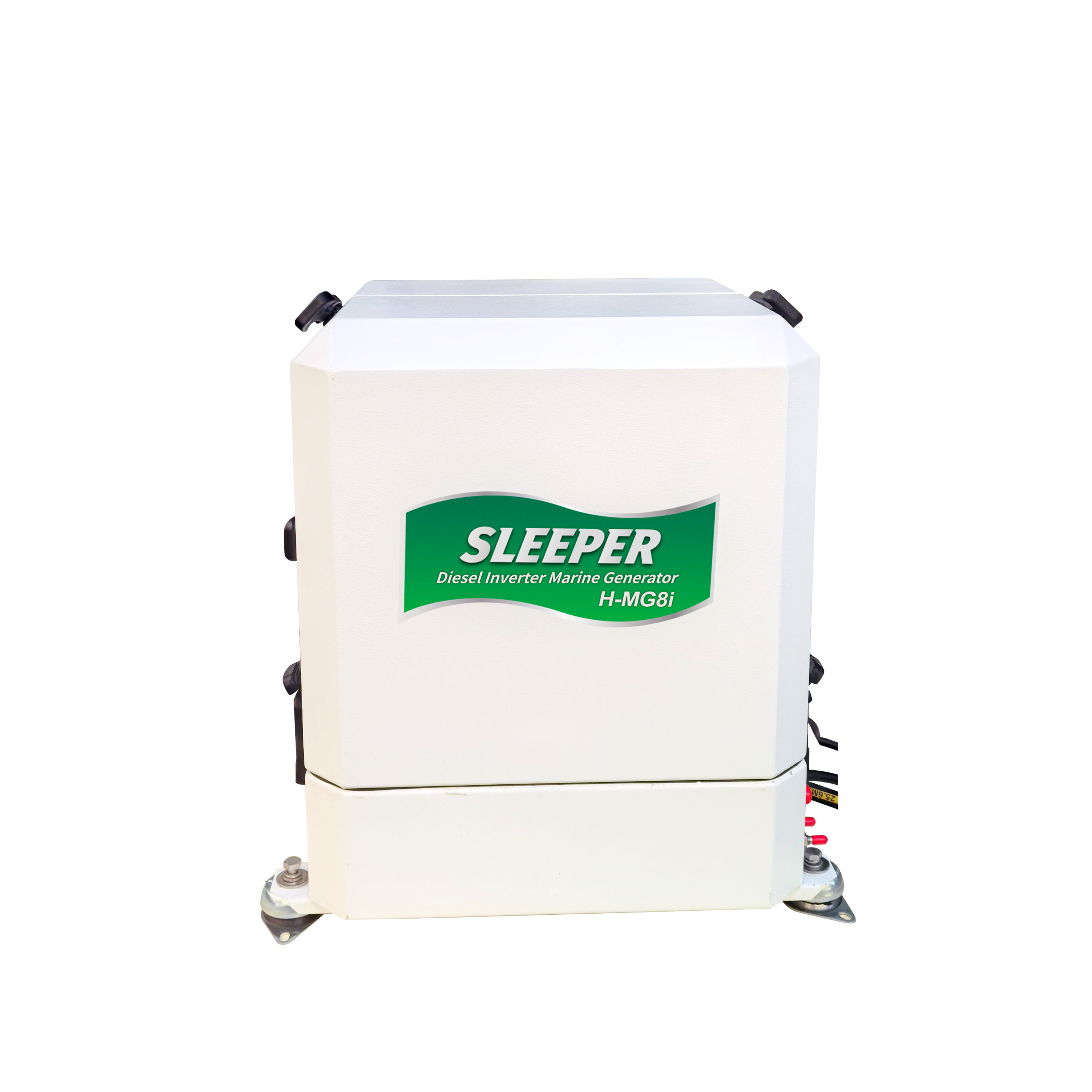

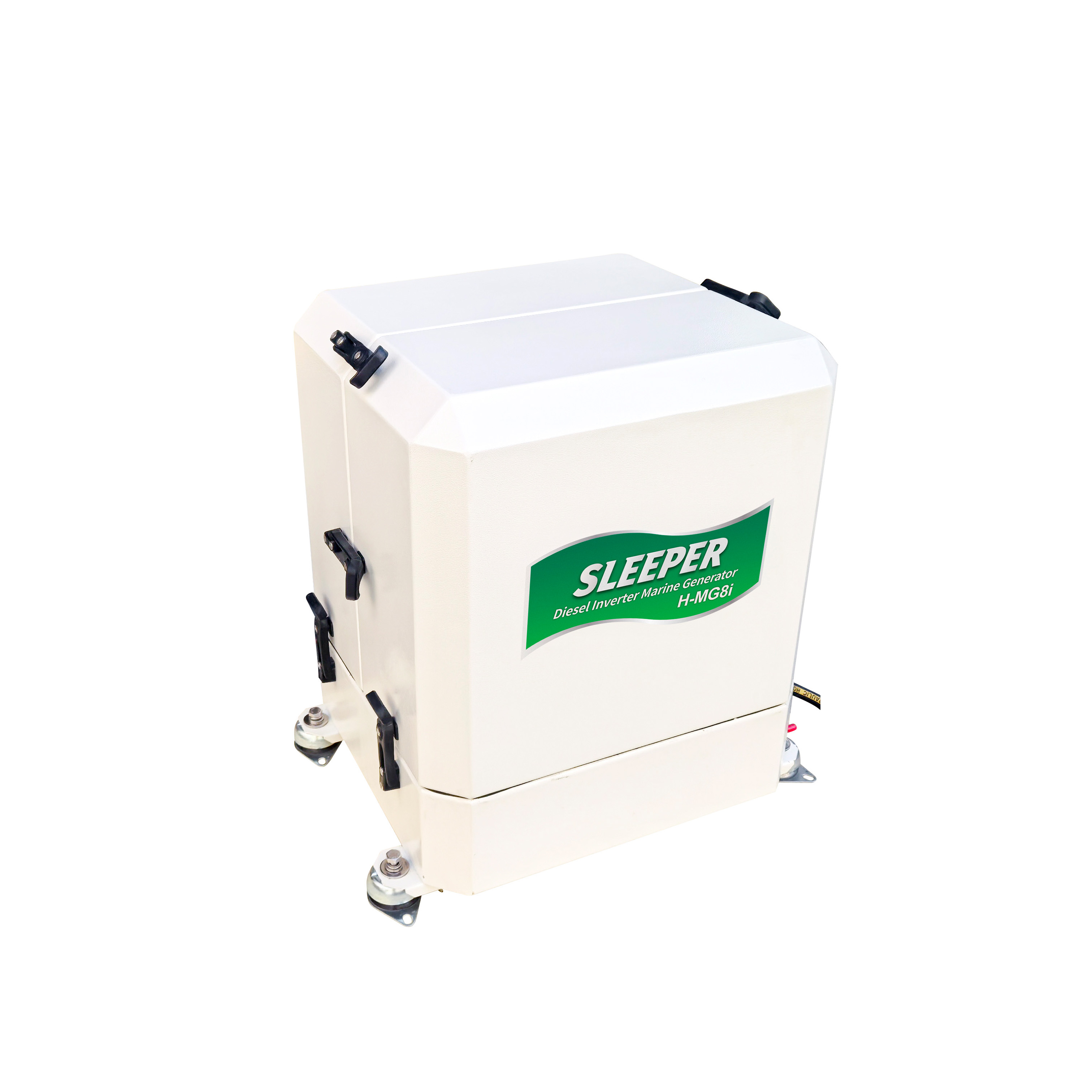

SLEEPER H-MG8i Diesel Inverter Marine Generator

Thanks to the PMG inverter technology, the Sleeper generator H-MG8i is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.



Product Features

l Reliable Kubota 2 cylinder water-cooled diesel engine ensure product reliability

l High efficient water-cooled permanent magnet alternator technology

l Extremely compact size and light weight for installation

l Extremely silent by aluminum composite material cabinet

l Virtually vibration free

l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics

l Inverter technology saves fuel about 30% and environmentally friendly

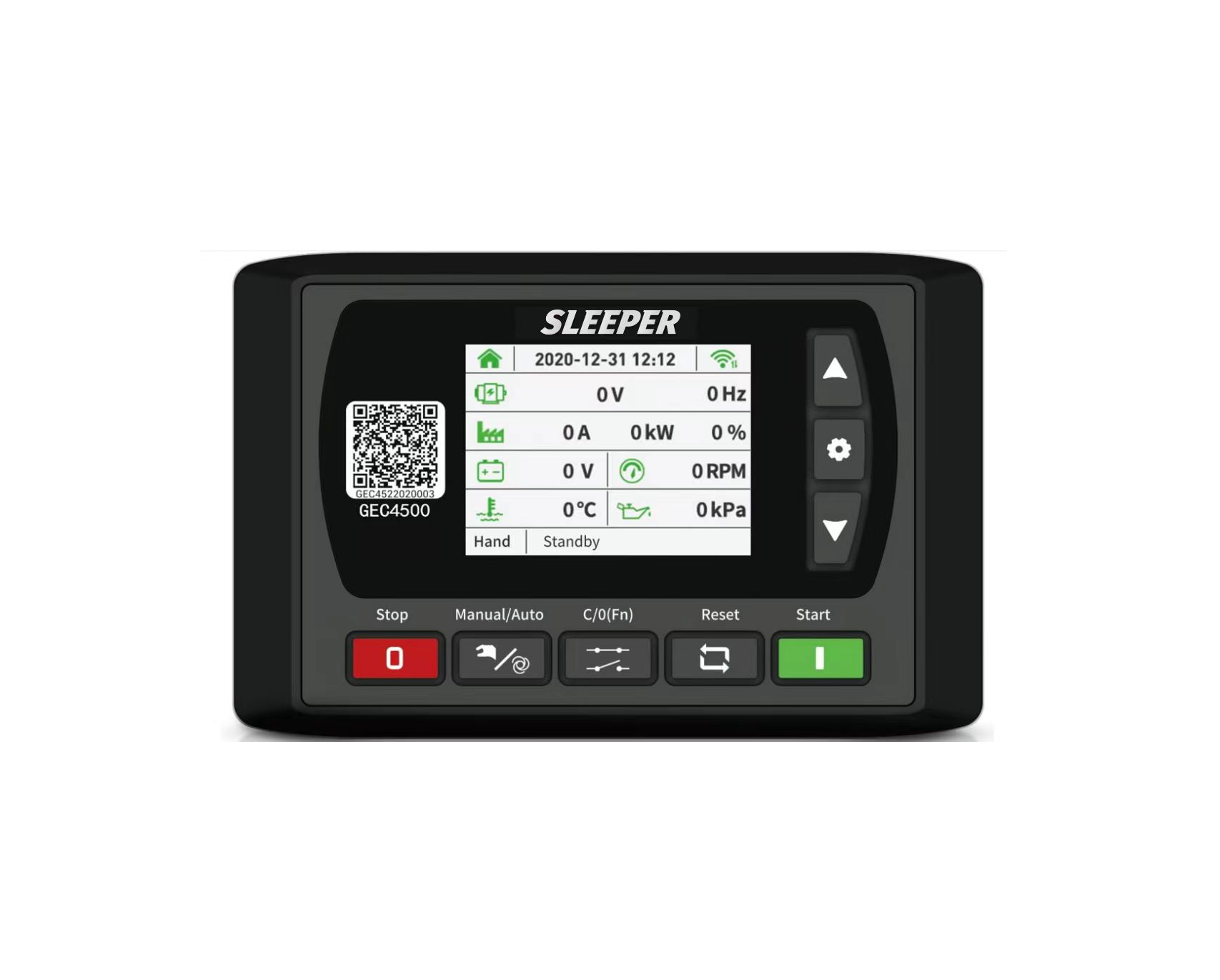

l Local and remote digital display control panel with highly intelligent multi-function protection

l Parallel technology enables more power and cost saving



SLEEPER H-MG8i Marine Generator Specification

MAIN SPECIFICATIONS

Model

H-MG8i

Nominal voltage(V)

230 / 120

Frequency(Hz)

50 / 60

Number of phases

1

Intermittent power

6.4kW / 8kVA

Continuous power

6kW / 7.5kVA

Noise(dBa/7m)

51

Rpm range

2200 - 3000, adjustable

Cooling system

Heat exchanger

Harmonic distortion

≤3%

Frequency stability

±0.1%

Alternator technology

Water-cooled, Brushless, Permanent Magnet

Generator control

PMG Inverter

Inverter (with DDC local)

PMGi 8

Control Panel

Digital Display Control(DDC local + DDC remote)

DIESEL ENGINE SPECIFICATIONS

Engine model

Kubota Z482

Engine power output

8.3kW / 3000rpm

Cylinder

2

Displacement(cc)

479

Bore x stroke(mm)

67 × 68

Fuel consumption(L/hr)

1.5 - 2.5

Start battery capacity

12VDC / 80Ah

Starter battery charge method/ current

Alternator 12V/14A

Lubricant

At least CF

Oil capacity(L)

2.5

DIMENSIONS & WEIGHT

Dimensions(LxWxH)

478 x 445 x 558 mm

Dry Weight

120 kg

Water inlet hose

Ø19mm

Exhaust hose

Ø40mm

Fuel Hose

Ø 8mm

Siphon breaker

Ø19mm
