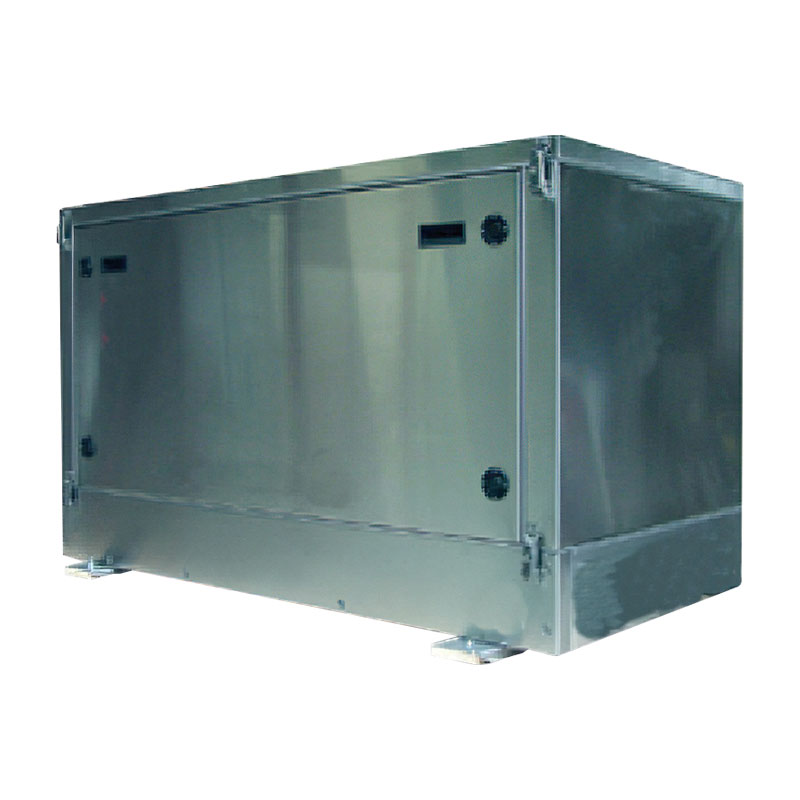

The Vehicle Fuel Efficient Quiet Inverter Diesel Generators give you the power you need when you need it. Rated frequency 50/60 Hz,Rated voltage 230 /120 V.These generators are ideal for RV generator, mobile medical generator, emergency vehicle generator and many other vehicle. They are super quiet, simple to operate and require minimal maintenance, provide Overload protection and Short circuit protection.
|
Generator sets |
|
|
Model |
H-GV 15000i |
|
Rated frequency (Hz) |
50/60 |
|
Rated voltage (V) |
230 /120 |
|
Waveform distortion rate (%) |
≤3% |
|
Rated output (KVA) |
12 |
|
Maximum output (KVA) |
15 |
|
Rotational speed (rpm) |
2200-2800 |
|
Noise level (dBa/7m) |
54 |
|
Dimensions (LxWxH) (mm) |
810*565*660 |
|
Net weight (Kg) |
210 |
|
Engines |
|
|
Engine brands |
Kubota |
|
Engine type |
D1005 |
|
Number of cylinders |
Three cylinders |
|
Discharge volume (CC) |
1001 |
|
Bore x stroke (mm) |
76*73.6 |
|
Cooling systems |
Indirect water cooling |
|
Fuels |
Light Diesel |
|
Fuel consumption (L/hr) |
1.5-4 |
|
Lubricating oil capacity (L) |
5.1 |
|
Control systems |
|
|
Start-up system |
One-touch electric start + remote start |
|
Start the battery |
12VDC |
|
Remote control panel |
With digital display and alarm |
|
Inverter |
Split |
|
Throttle control |
Automatic |
|
Dampers control |
Automatic |
|
Other functions |
|
|
Overload protection |
Yes |
|
Short circuit protection |
Yes |
|
Temperature protection |
Yes |
|
Oil shortage alarm |
Yes |
|
Petrol oil level alarm |
Yes |
|
Parallel function |
Optional |
|
Automatic changeover switches |
Yes |
