| Generator sets |
| Model |
HSD4000iS（Digital models） |
| Frequency (Hz) |
50 / 60 |
| Rated voltage (V) |
230 /120 |
| Waveform distortion (%) |
≤3% |
| Rated output (kW) |
3.2 |
| Maximum output (KW) |
3.5 |
| Rotational speed (rpm) |
2800-3600 |
| Noise level (dBa/7m) |
48-56 |
| Dimensions (L x W x H) (mm) |
480*390*285 |
| Net weight (Kg) |
45 |
| Engines |
| Engine manufacturers |
YAMAHA |
| Engine type |
MZ200 |
| Displacement (cc) |
192 |
| Cooling systems |
Air-cooled |
| Fuels |
Clean petrol above 92 |
| Fuel consumption (L/hr) |
0.5-1.5 |
| Lubricant capacity (L) |
0.6 |
| Control systems |
| Start-up system |
Remote start |
| Start the battery |
12VDC |
| Remote control panel |
With digital display and alarm |
| Inverter |
Integration |
| Throttle control |
Automatic |
| Dampers control |
Automatic |
| Other functions |
| Overload protection |
Yes |
| Short circuit protection |
Yes |
| Temperature protection |
Yes |
| Oil shortage alarm |
Yes |
| Petrol fuel level display |
Yes |
| Mains automatic transfer switch |
Yes |
| Parallel function |
Optional |
Specification Sheet
Generator
| Model |
HSD4000iS |
| Rated output（KW） |
3.2 |
| Max output（KW） |
3.5 |
| Rated voltage（V） |
230/120 |
| Frequency（Hz） |
50/60 |
| Distortion factor |
≤3% |
| Speed（r/m） |
2800-3600 |
| Noise(dBa/7m) |
48-56 |
| Dimensions（L×W×H）（mm） |
480×390×285 |
| Net weight(Kg) |
45 |
| Fuel supply system |
External fuel tank or shared fuel tank with vehicle |
| Alternator |
PMA |
| Control system |
Remote panel control |
| Inverter |
Integrate |
| Throttle control |
Auto |
| Choke valve control |
Auto |
| Other function |
Overload, short-circuit, temperature and oil alarm protection, fuel indicator，changeover relay for making priority circuits |
| Parallel function |
Optional |
Engine
| Model |
MZ200 |
| Brand |
YAMAHA |
| Type |
Single cylinder, air-cooled, four stroke |
| Displacement(cc) |
192 |
| Fuel |
Unleaded gasoline |
| Start system |
12VDC |
| Consumption（L/hr） |
0.5-1.5 |
| Oil capacity(L) |
0.6 |
Product structure

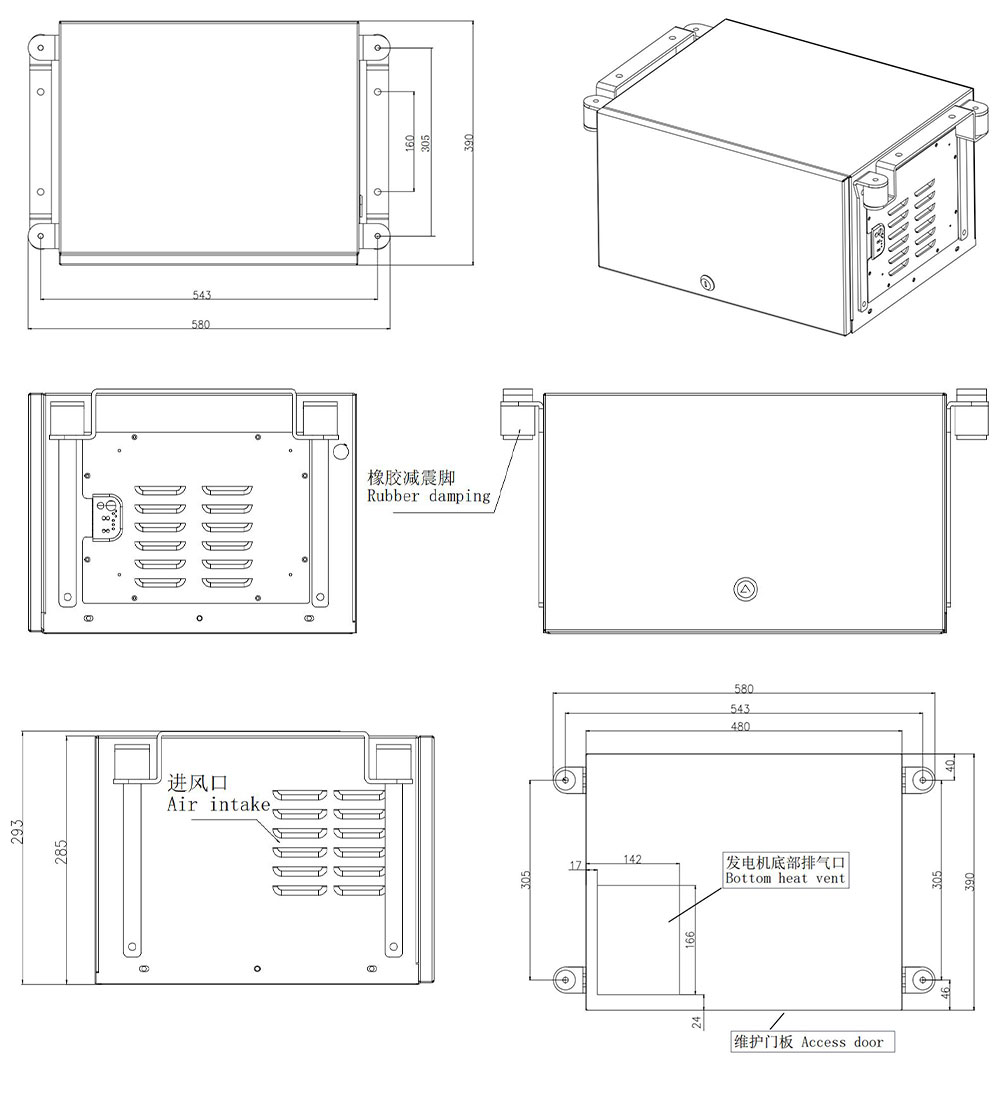

Generator overall dimension

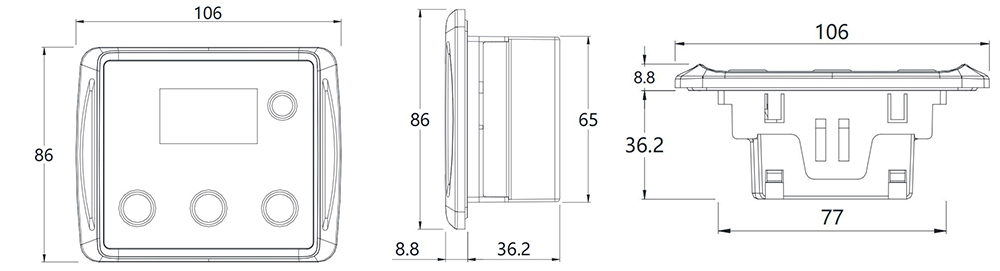

Panel overall dimension
Panel overall dimension 106mm×86mm×45mm，Panel cutout 78mm×66mm
Size of Muffler

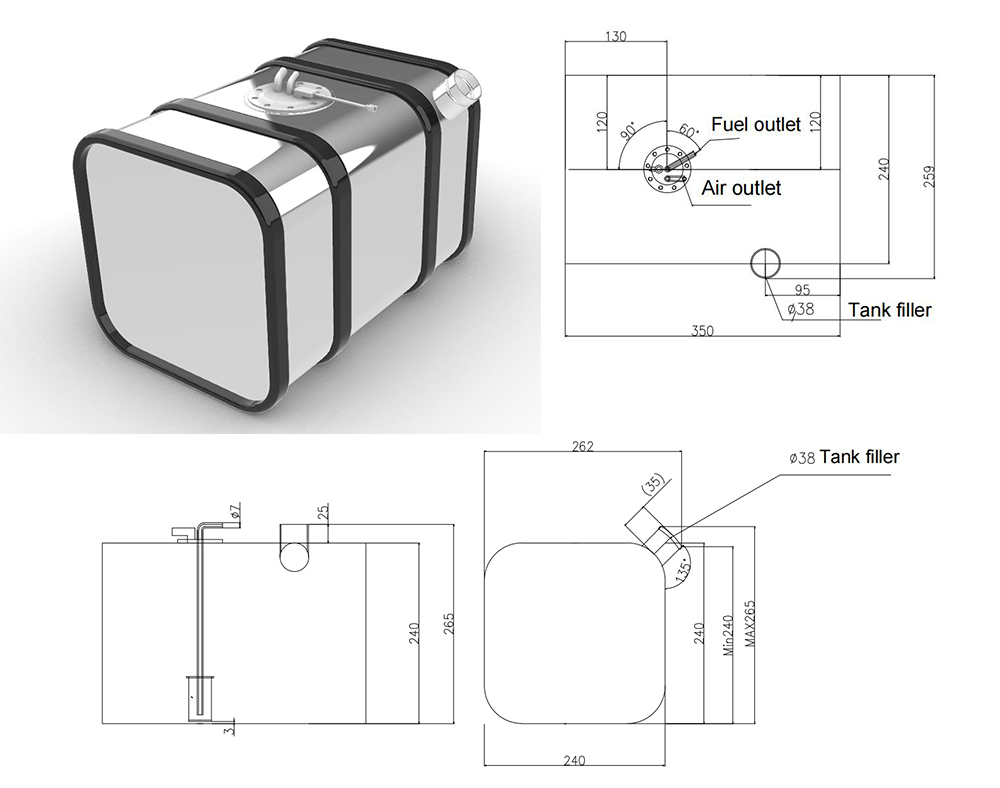

Size of fuel tank

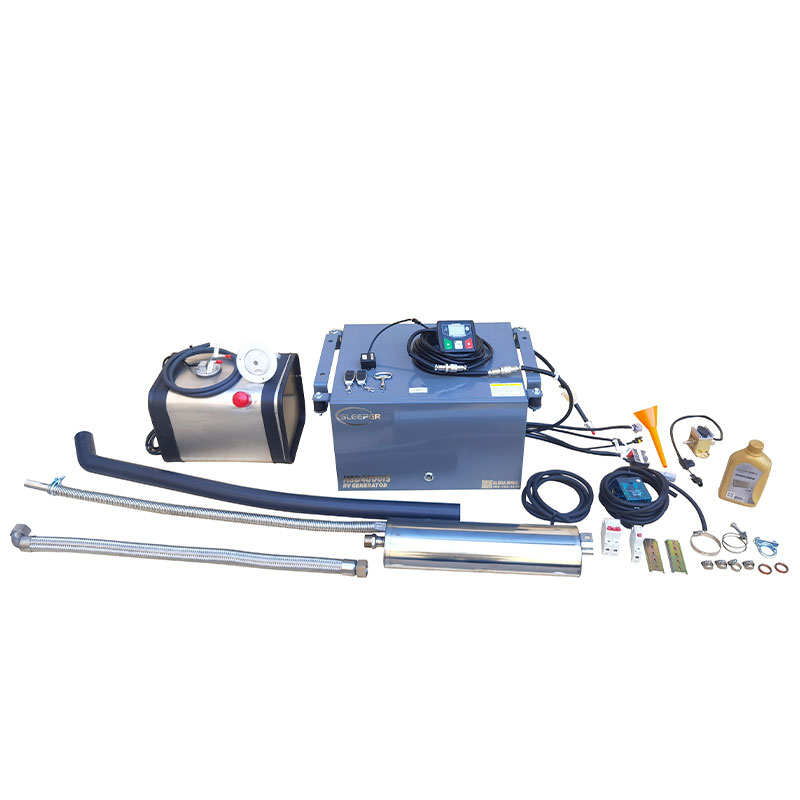

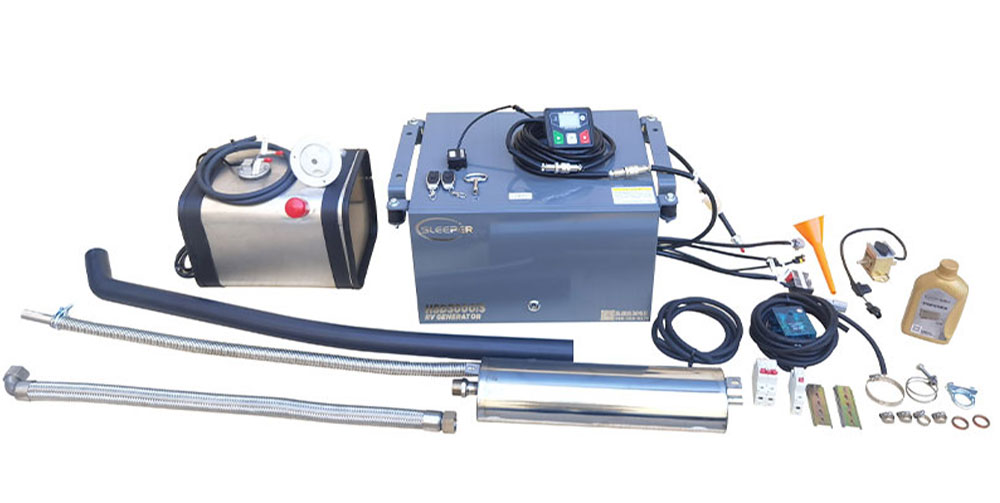

Standard Item list of HSD4000iS
| Item list |
Amount |
Remarks |
| Generator |
1 set |
|
| Remote control panel |
1 set |
|
| Control panel cable |
6 meters |
|
| Remote controller |
1 set |
Including 1 remote control module and 2 transmitters |
| Fuel tube |
2 meters |
Including 2 clamps |
| Electric fuel pump |
1 set |
|
| Muffler |
1 set |
Including exhaust bend pipe 0.8 meters, 1 muffler, exhaust extension pipe 1 meter, 2 exhaust gaskets, 1 clamp |
| Change over switch |
1 set |
Automatic switch between generator and mains |
| Air switch |
2 sets |
Including 1 single P60A, 1 double P25A, 2 fixing strips |
|
| Oil filling funnel |
1 set |
|
| 20L fuel tank |
1 set |
Size：35x24x24cm. Including 1 meter refueling pipe, 1 meter return pipe, 1 set of refueling port, 2 large clamps, 2 small clamp, 2 fuel tank fixing strips and 8 nuts,4 flat pads and 4 spring pads |
|

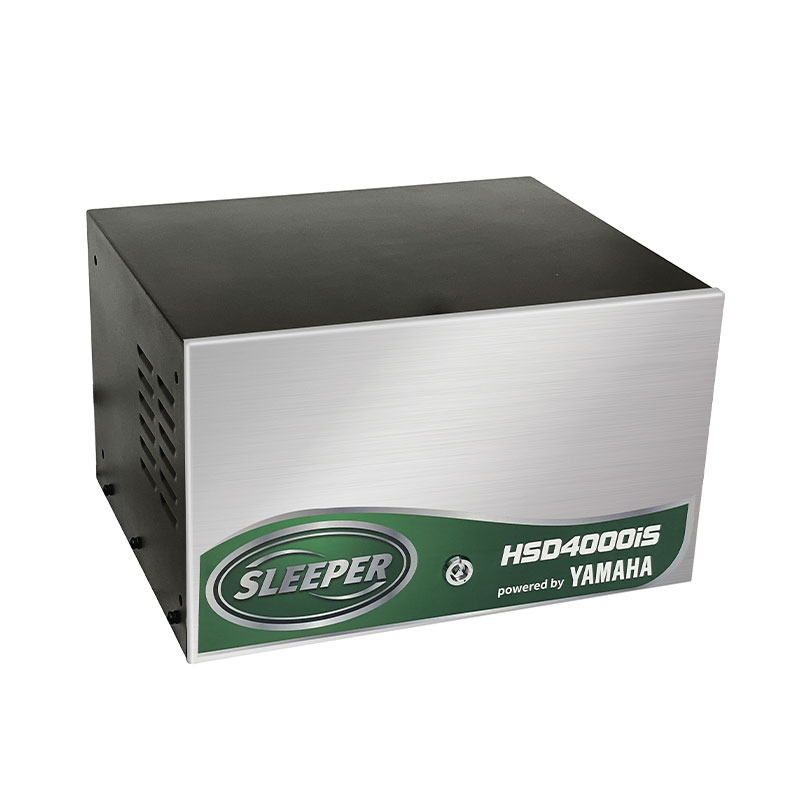

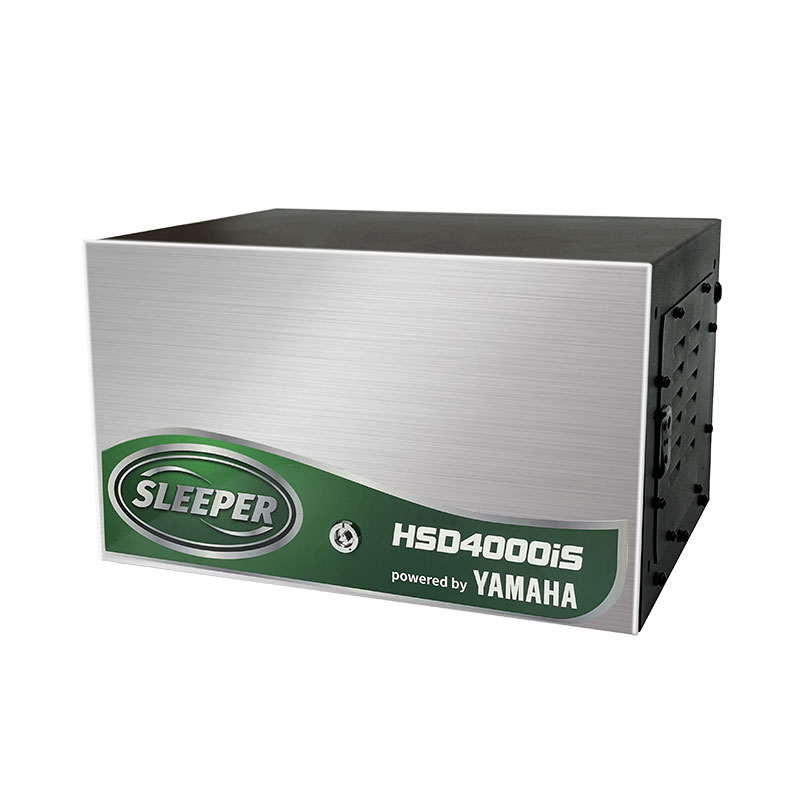

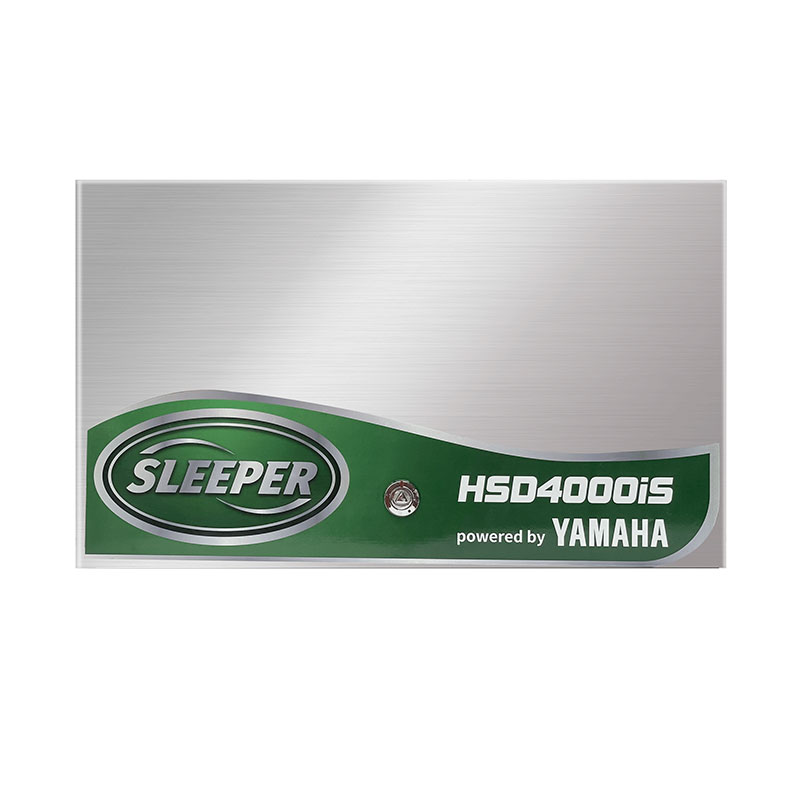

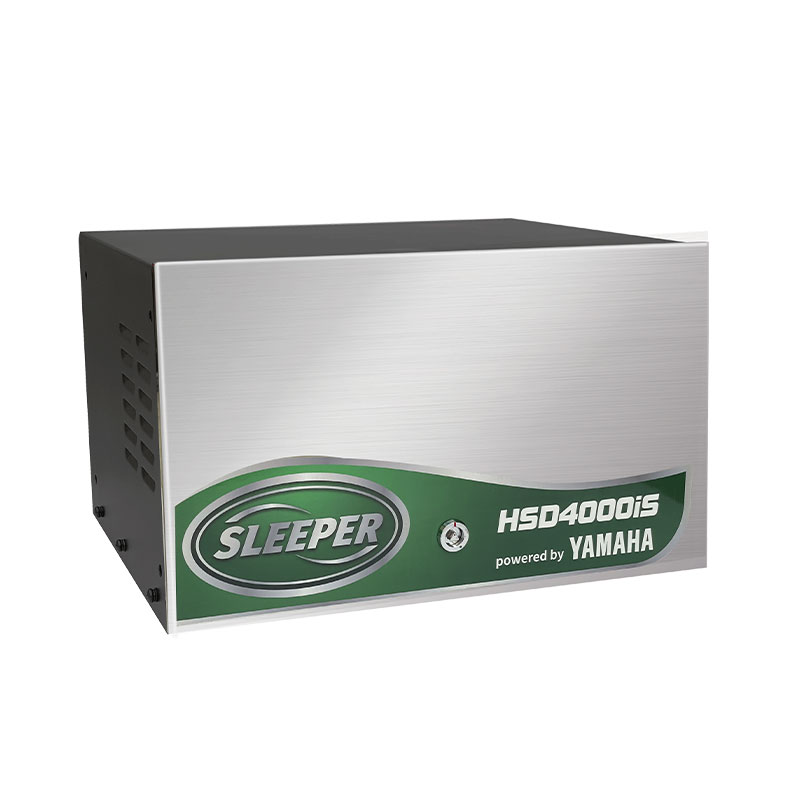

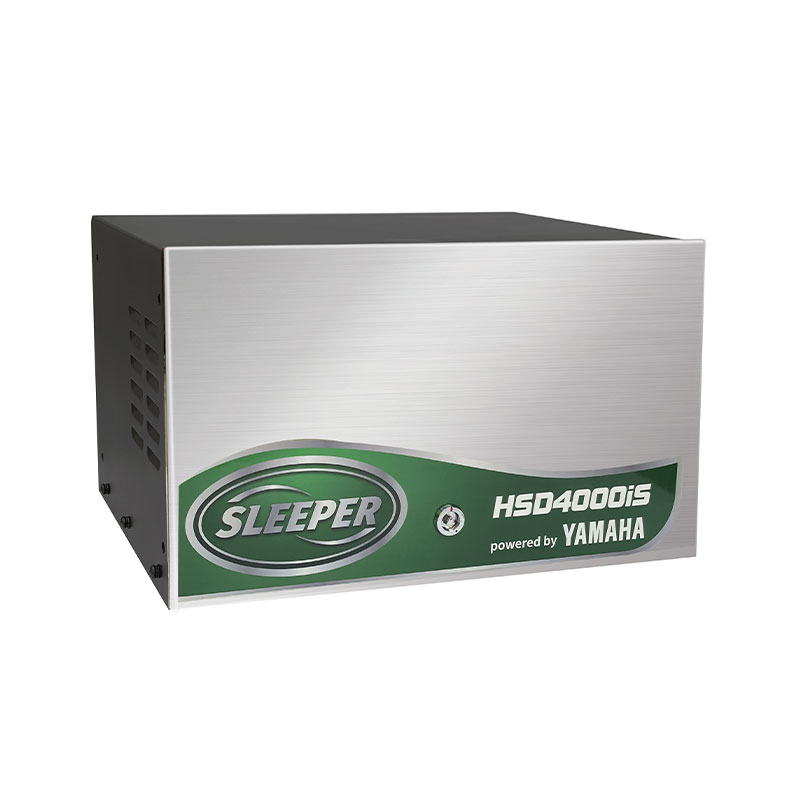

Product Photo Show
Generator installation instructions

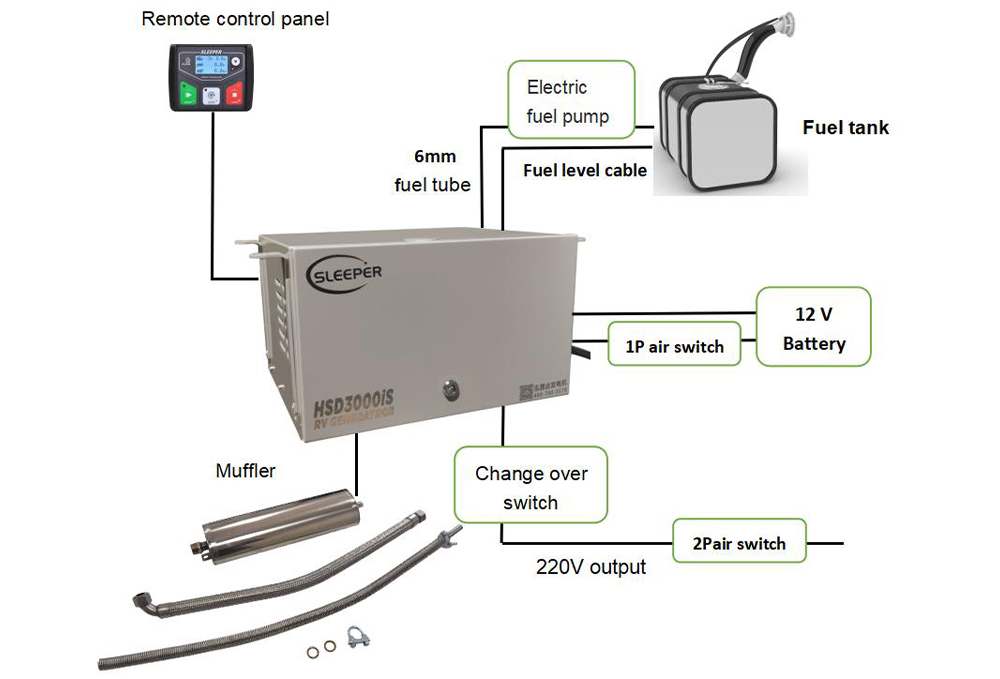

Installation diagram

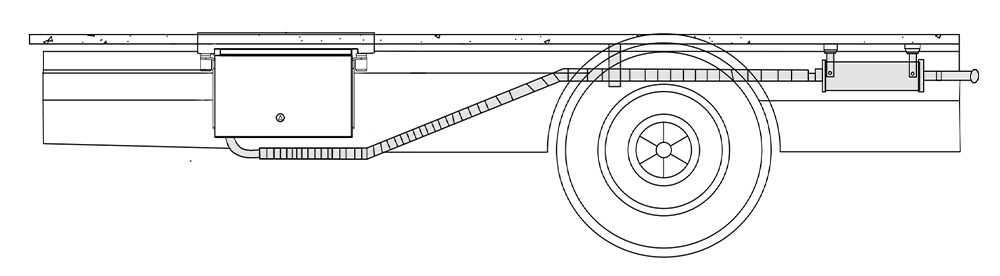

Vehicle installation drawing

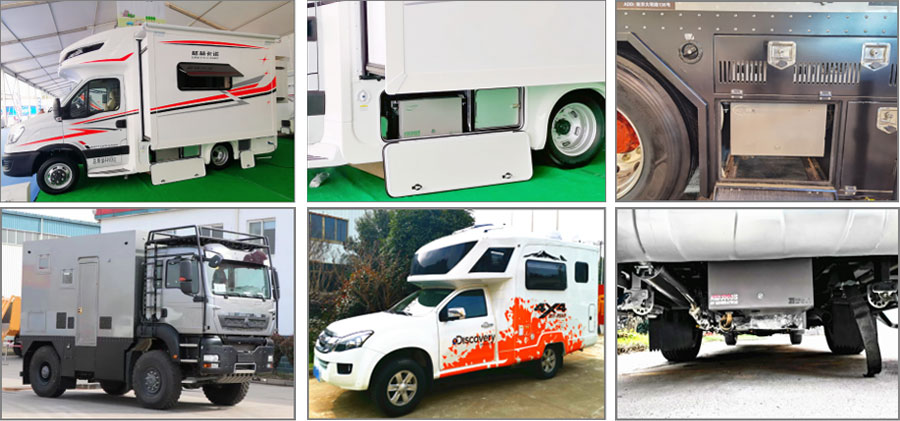

Installation cases
Warranty: 1 year.
