H-MG15is 12KW Intelligent Diesel Generator for Boat

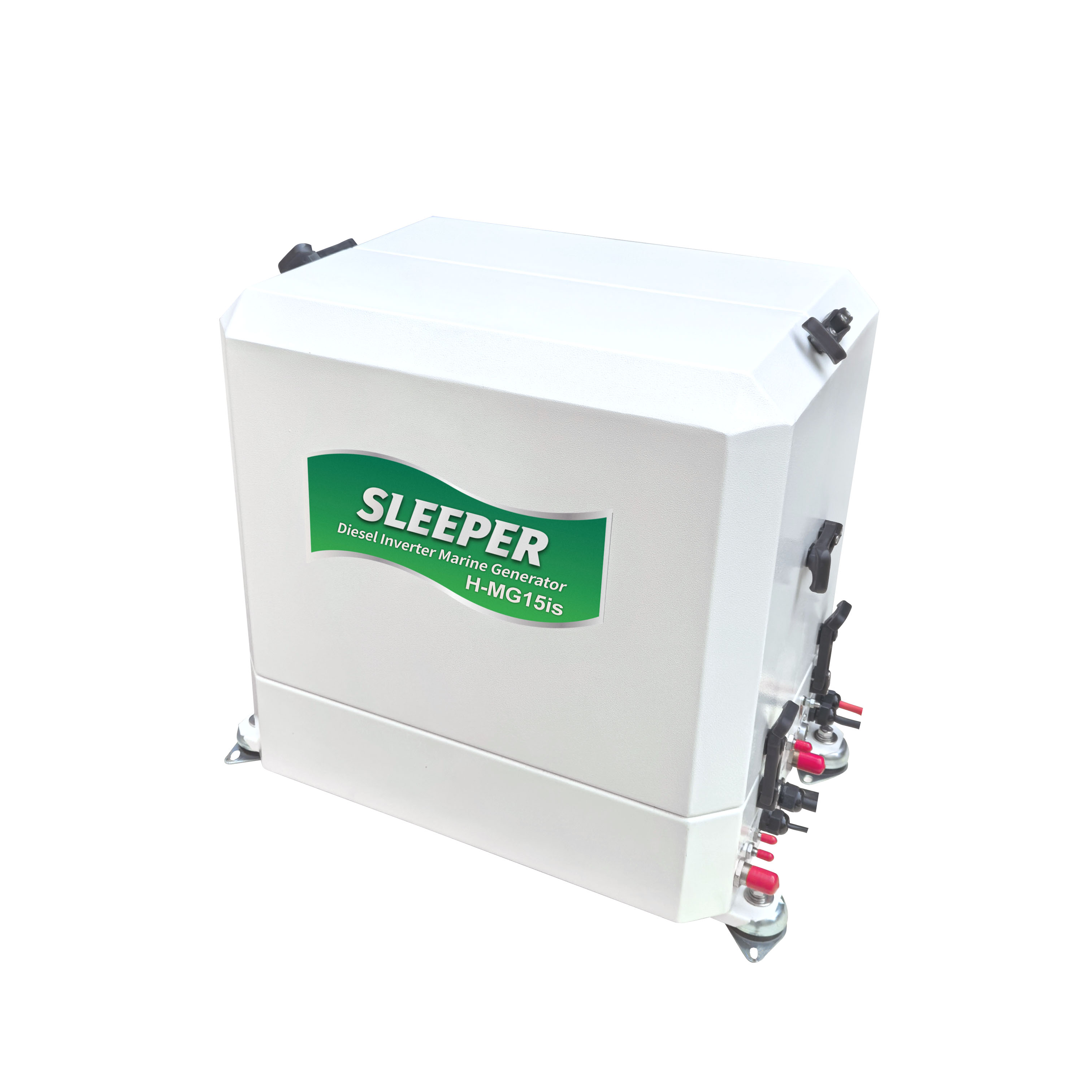

SLEEPER H-MG15is Diesel Inverter Marine Generator

Thanks to the PMG inverter technology, the Sleeper generator H-MG5is is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.

Product features

Reliable Kubota3 cylinder water-cooled diesel engine ensure product reliability
High efficient water-cooled permanent magnet alternatortechnology
Extremely compactsize and light weight for installation
Extremely silentby aluminum composite material cabinet
Virtually vibration free
Outstanding voltage stability and pure sines waveare ideal for sensitive electronics
Invertertechnology saves fuel about 30% and environmentally friendly
Local and remote digital display control panel withhighly intelligent multi-function protection
Parallel technology enables more power and cost saving

description
message to us
FAQ
DOWNLOAD

SLEEPER H-MG15is Marine Generator Specification

MAIN SPECIFICATIONS
Model	H-MG15is
Nominal voltage(V)	230 / 120
Frequency(Hz)	50 / 60
Number of phases	1
Intermittent power	12.6kW /15.8kVA
Continuous power	12kW /15kVA
Noise(dBa/7m)	51
Rpm range	2200 - 3000, adjustable
Cooling system	Heat exchanger
Harmonic distortion	≤3%
Frequency stability	±0.1%
Alternator technology	Water-cooled, Brushless, Permanent Magnet
Generator control	PMG Inverter
Inverter (with DDC local)	PMGi 15
Control Panel	Digital Display Control（DDC local + DDC remote）
DIESEL ENGINE SPECIFICATIONS
Engine model	Kubota D902
Engine power output	18.5kW / 3600rpm
Cylinder	3
Displacement(cc)	898
Bore x stroke（mm）	72 × 73.6
Consumption（L/hr）	1.5 - 4
Start battery capacity	12VDC / 80Ah
Starter battery charge method/ current	Alternator 12 V /14A
Lubricant	At least CF
Oil capacity(L)	3.7
DIMENSIONS & WEIGHT
Cabinet dimensions（LxWxH)	648 x 445 x 558 mm
Cabinet weight	180 kg
Water inlet hose	Ø19mm
Exhaust hose	Ø40mm
Fuel Hose	Ø 8mm
Siphon breaker	Ø19mm

Sleeper

About Sleeper Generator

Sleeper Generator is professional China H-MG15is 12KW Intelligent Diesel Generator for Boat suppliers and ODM H-MG15is 12KW Intelligent Diesel Generator for Boat company.Sleeper Generator has made generators which stand out for quiet sound levels, super compact size, light weight, high efficiency and innovative and elegant design. Our proprietary Inverter technology enables us possible to build the smallest, lightest and quietest generators in the world that are ideal for installation on vehicles or boats. Sleeper generator has a product range from 2-200KW and they are used worldwide in places that are without normal electrical power. This includes onboard motorboats/yachts, commercial vessels, many types of vehicles , in remote locations and military.
