Intelligent Multi-Function Protection advanced safety features and protection mechanisms to safeguard the generator and connected systems from potential issues.Experience the calming embrace of near-silent operation. This 15kW Quietest Marine Diesel Generator's advanced noise suppression techniques and precision engineering minimize noise and vibrations, creating an atmosphere of relaxation while preserving the beauty of the marine environment.

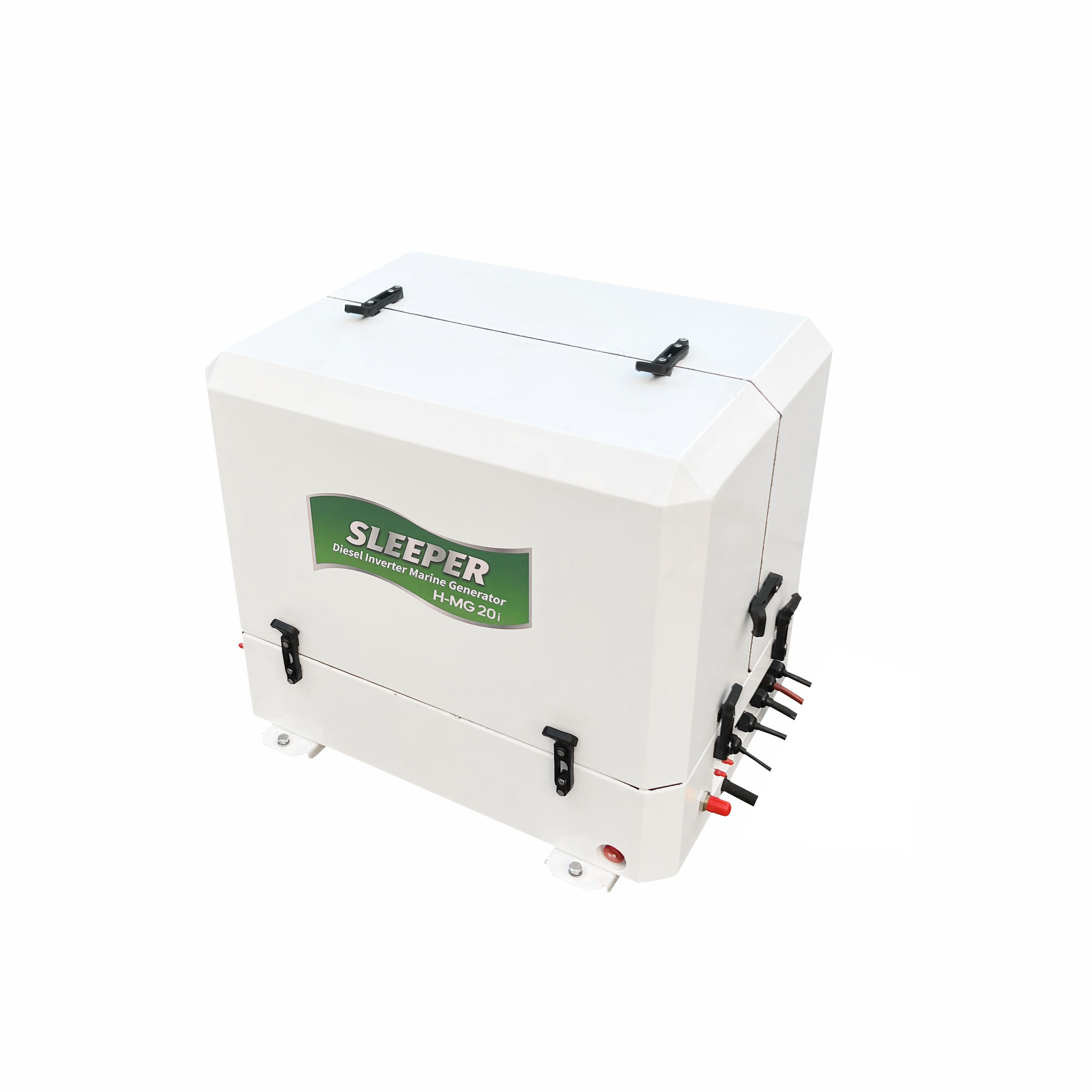

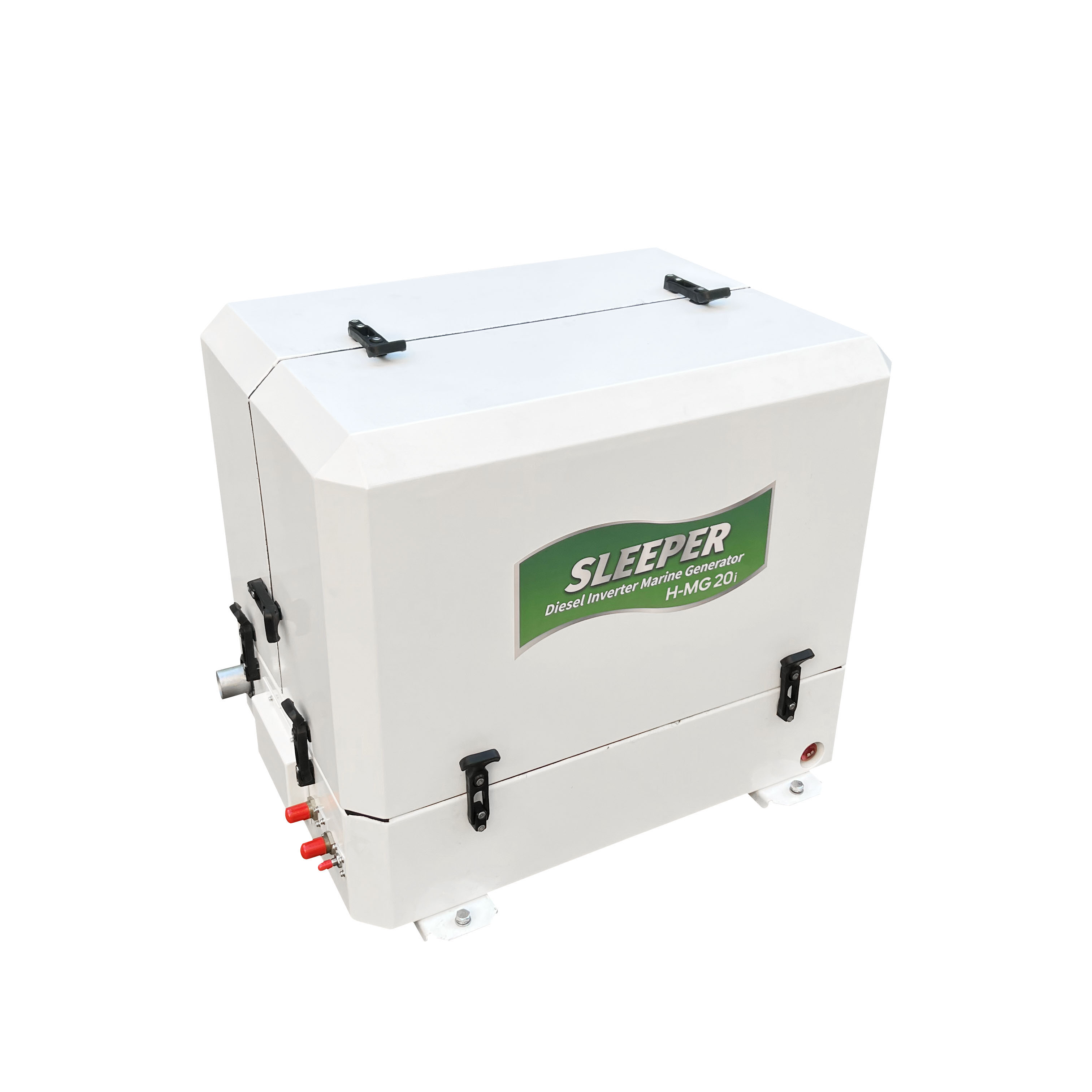

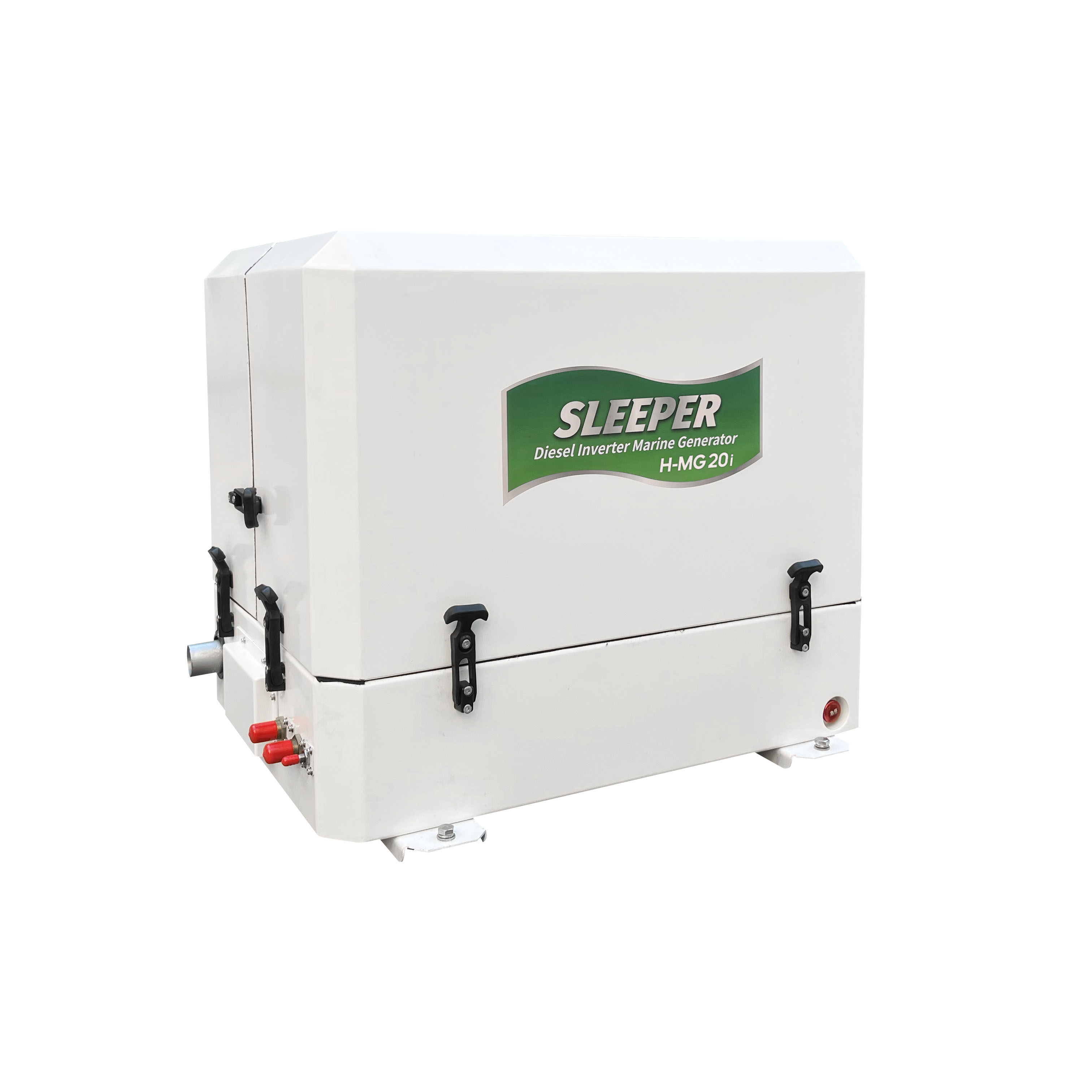

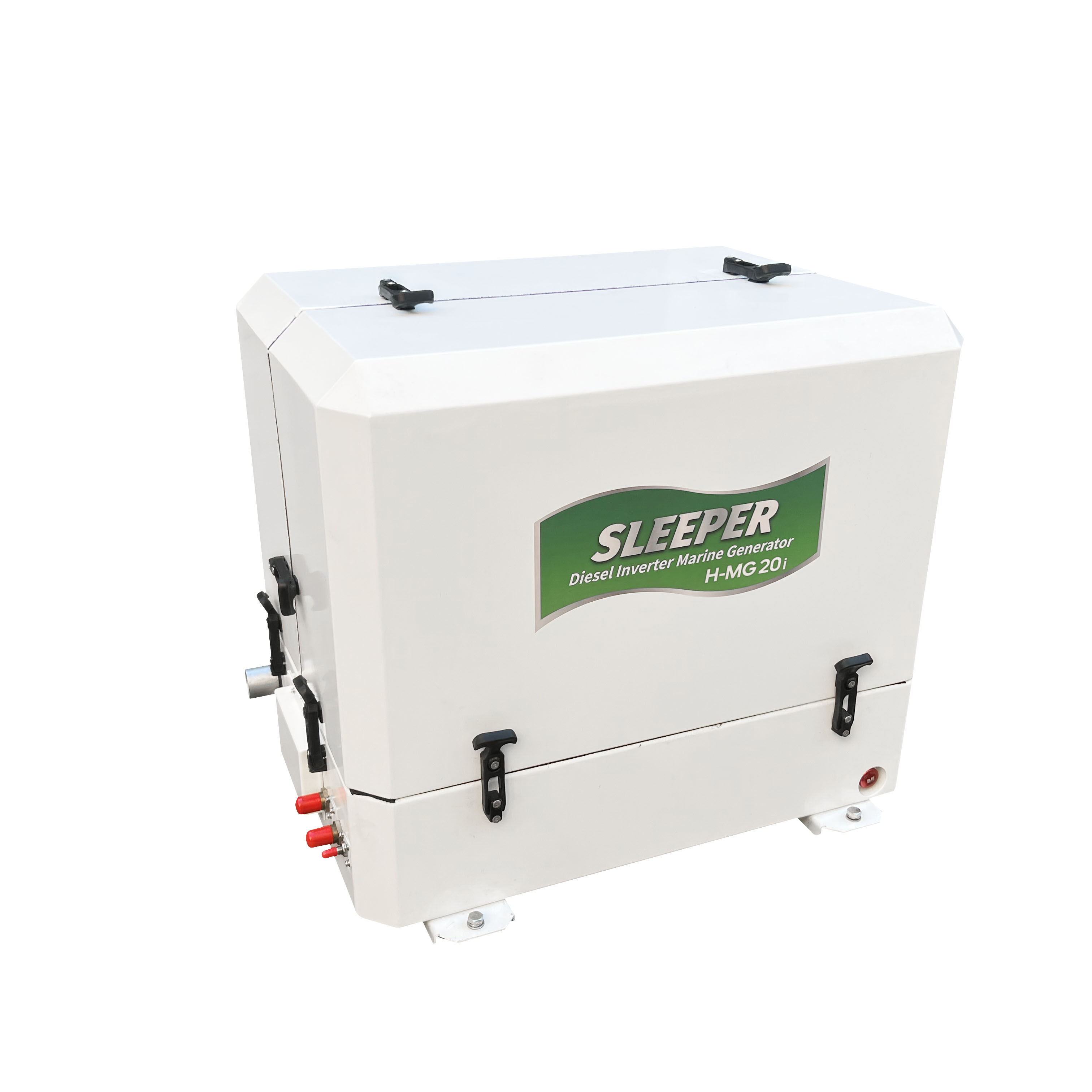

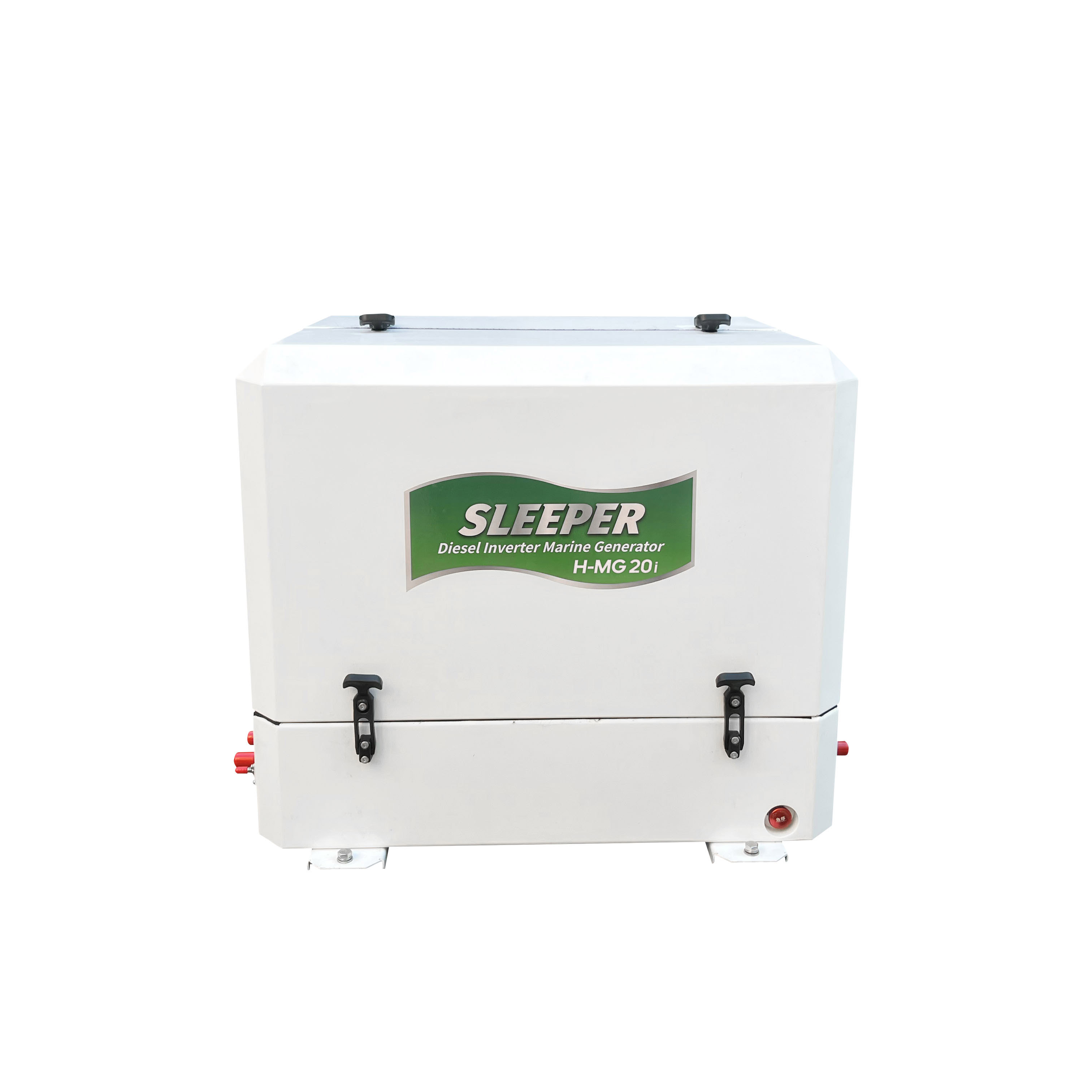

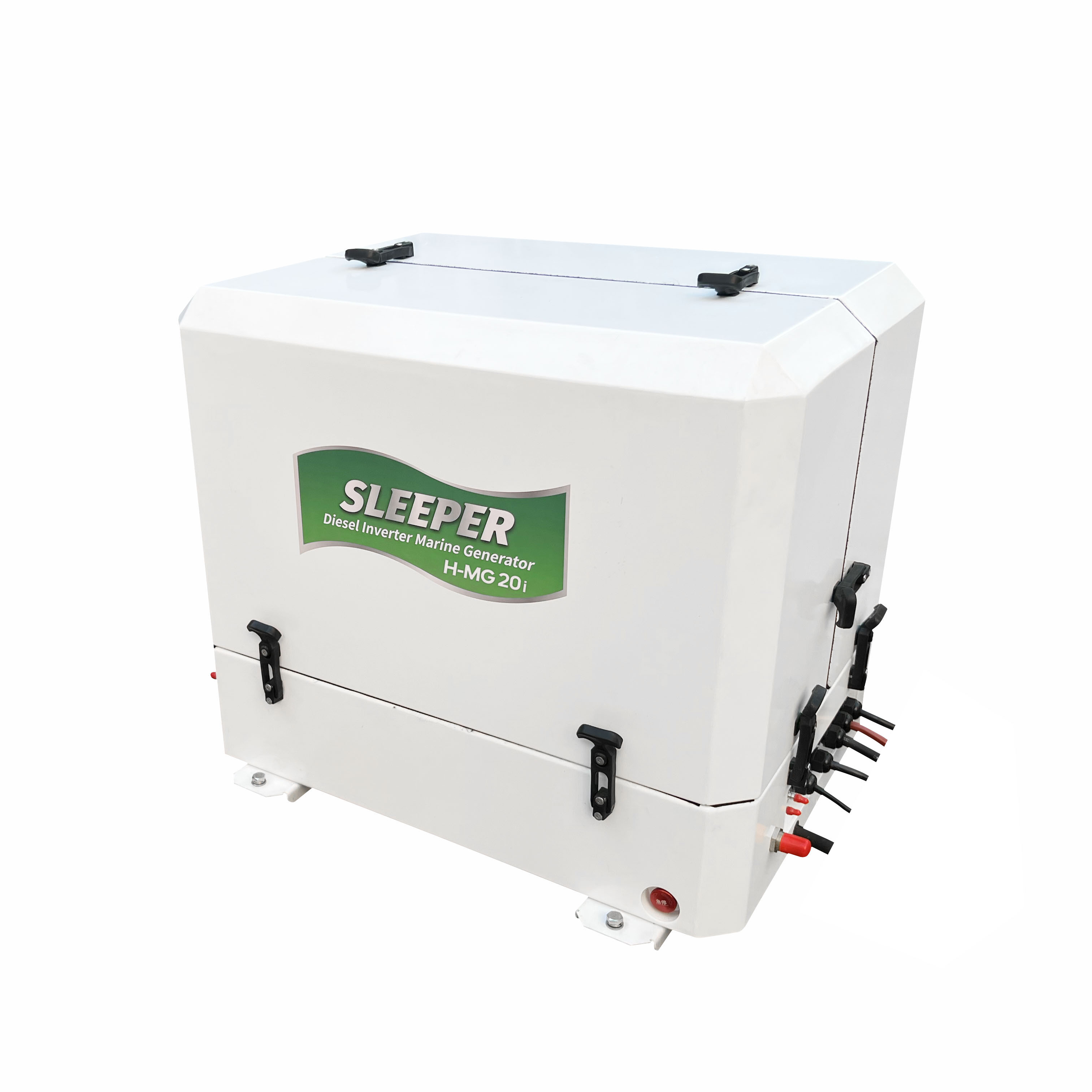

SLEEPER H-MG20i Diesel Inverter Marine Generator
Thanks to the PMG inverter technology, the Sleeper generator H-MG20i is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.
Product Features
l Reliable Kubota or Yanmar 4 cylinder water-cooled diesel engine ensure product reliability
l High efficient water-cooled permanent magnet alternator technology
l Extremely compact size and light weight for installation
l Extremely silent by aluminum composite material cabinet
l Virtually vibration free
l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics
l Inverter technology saves fuel about 30% and environmentally friendly
l Local and remote digital display control panel with highly intelligent multi-function protection
l Parallel technology enables more power and cost saving
| SLEEPER 15kW Marine Generator Specification | |
| Generator | |
| Model | H-MG20i |
| Dimensions（LxWxH)(mm) | 890×590×690 |
| Net weight(Kg) | 265 |
| Noise(dBa/7m) | 54 |
| Cooling system | Dual circuit freshwater cooling via a heat exchanger |
| Performance | |
| Frequency(Hz) | 50 / 60 |
| Output Voltage(V) | 230 /120 |
| Voltage stability | ≤3% |
| Frequency Stability | ±0.1% |
| Max power (kW) | 17 |
| Continuous power(kW) | 15 |
| Voltage regulation | Electronic |
| Frequency regulation | Electronic |
| Control | |
| Start system | 12VDC |
| Auto start | Integrated |
| Control panel | Digital display control（DDC local + DDC remote） |
| Inverter (with DDC local) | PMG 20 |
| Inverter weight (Kg) | 18 |
| Inverter dimensions（mm） | 463 x 234 x180 |
| Engine | |
| Engine brand | YANMAR |
| Engine model | 3TNV88 |
| Cylinder | 3 cylinder |
| Displacement(cc) | 1642 |
| Speed(rpm) | 2000-2600 |
| Fuel | Diesel |
| Consumption（L/hr） | 1.5-4.8 |
| Oil capacity(L) | 6.7 |
