Weighing in as a true lightweight champion, this 10kW Marine Lightweight Diesel Generator sets a new standard for onboard power without adding unnecessary bulk. Experience the freedom of enhanced maneuverability and a simplified installation process. Boasting a sleek and compact form factor, our generator seamlessly integrates into your vessel's layout, utilizing minimal space while delivering maximum power.The small size and light weight of the generator make it suitable for marine installations where space is limited, without sacrificing power output.

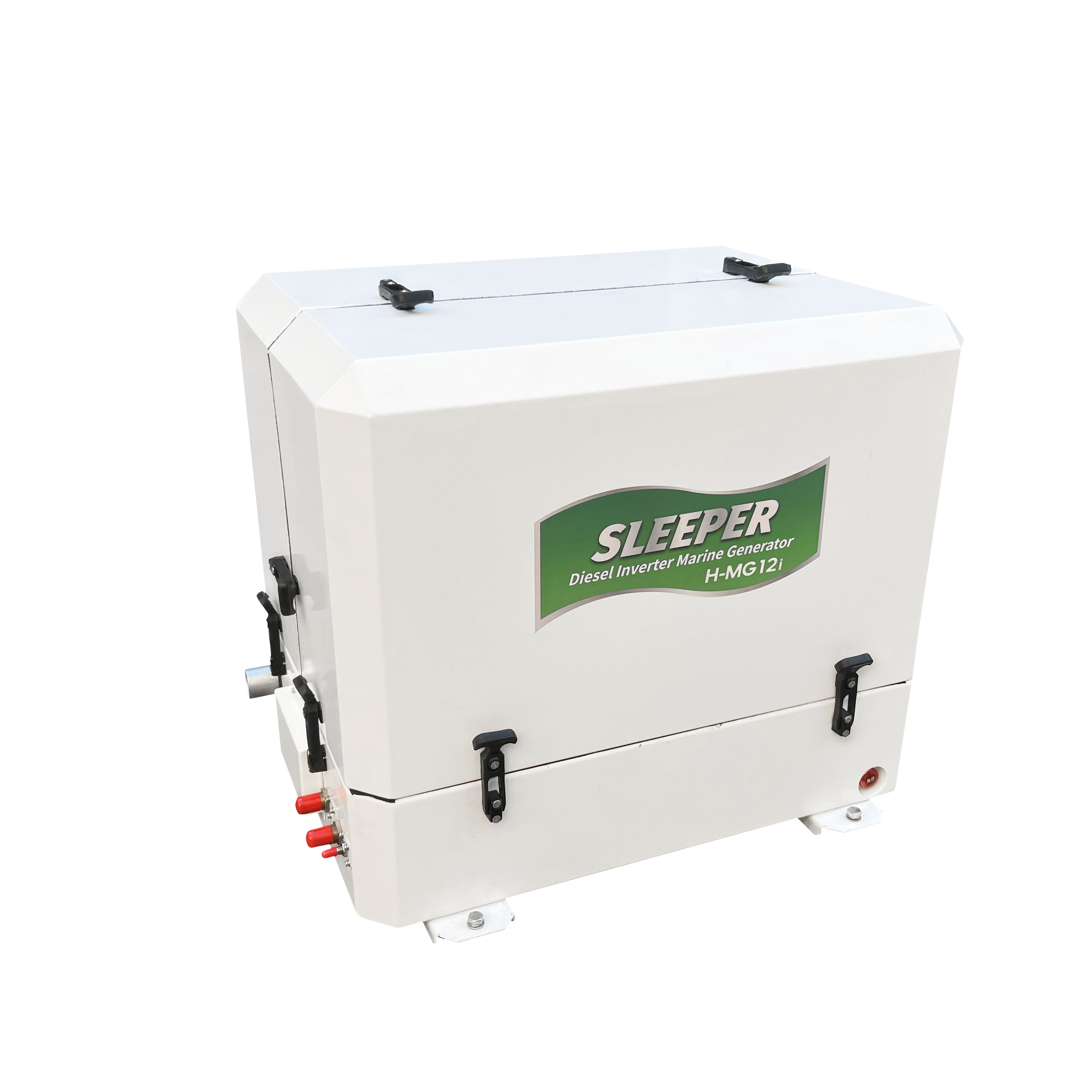

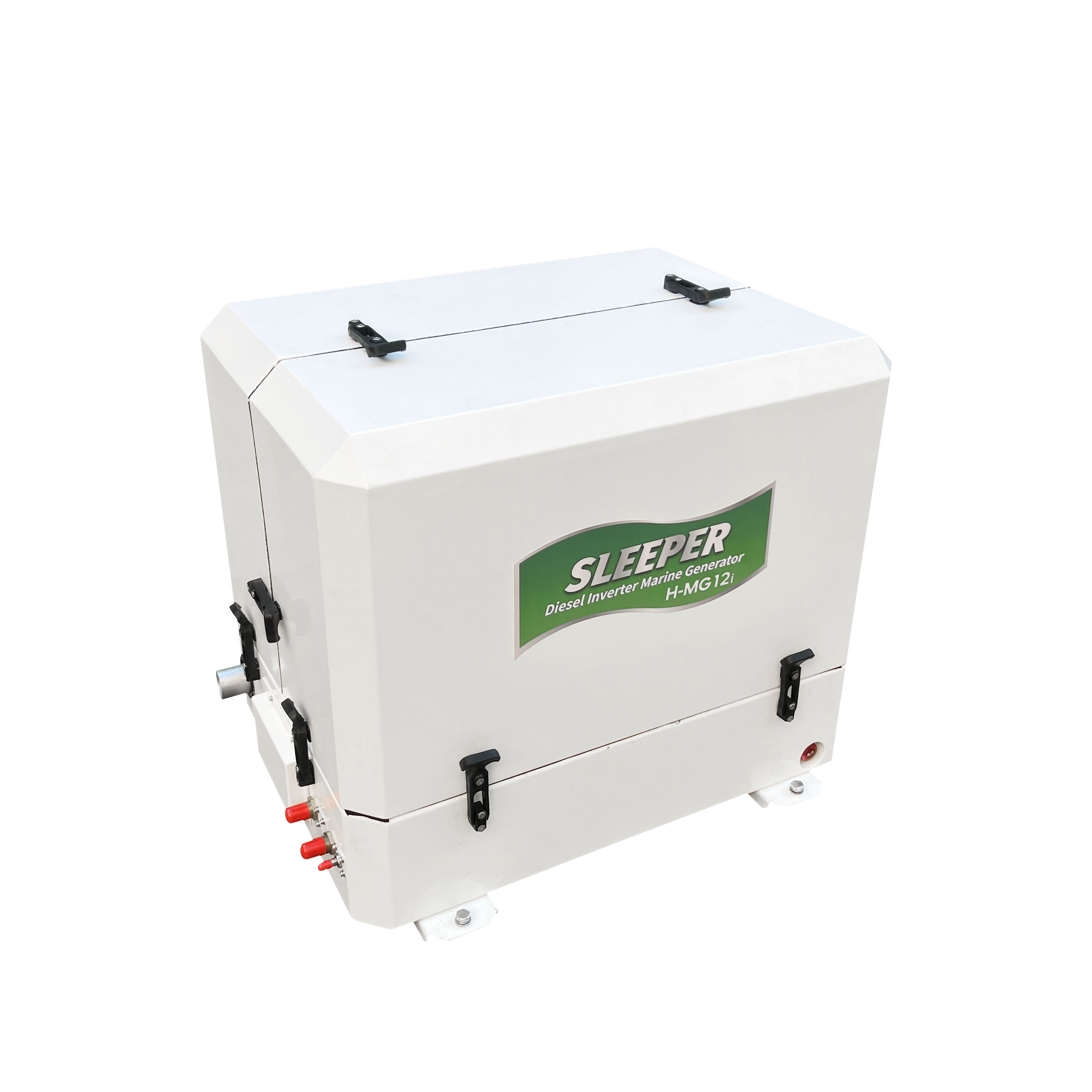

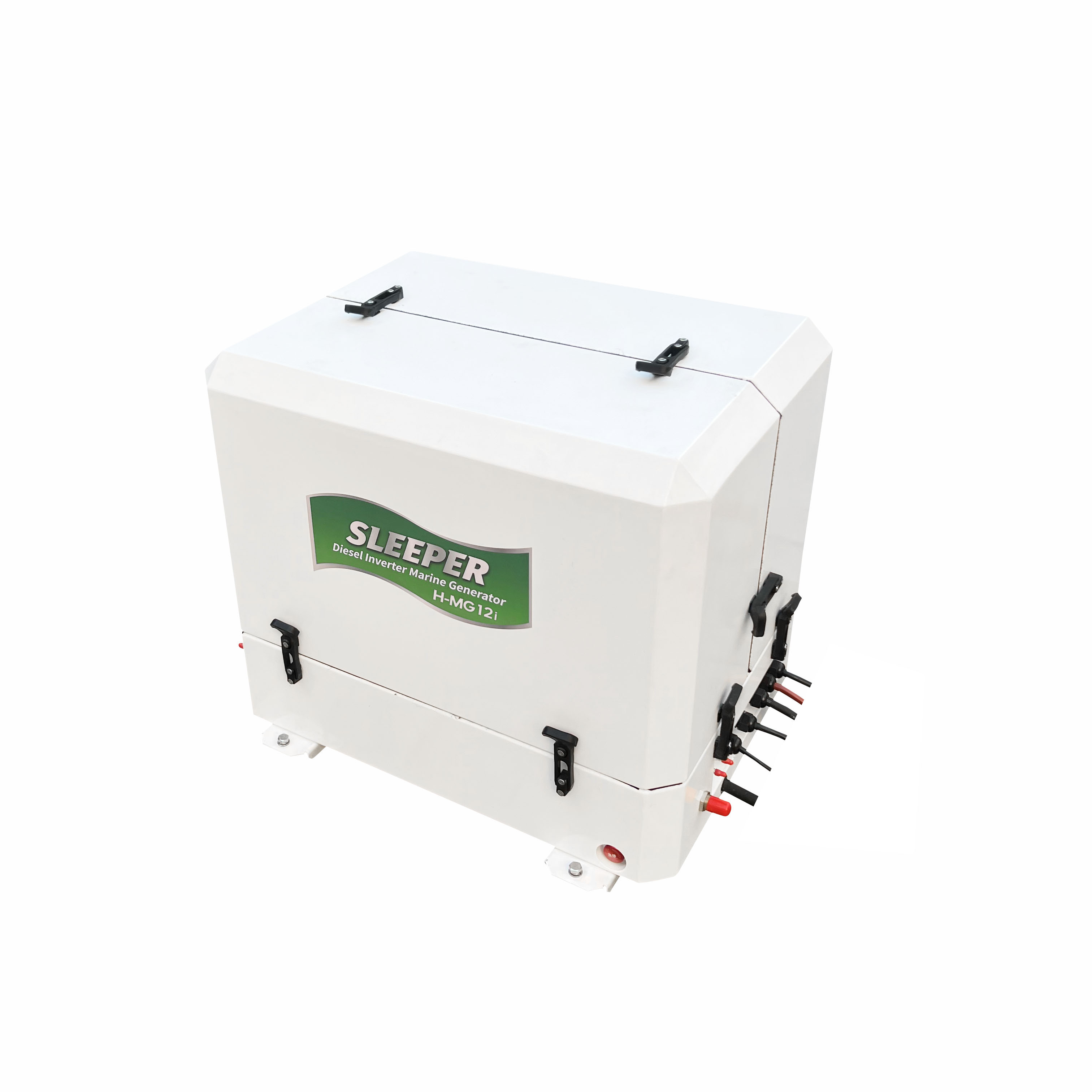

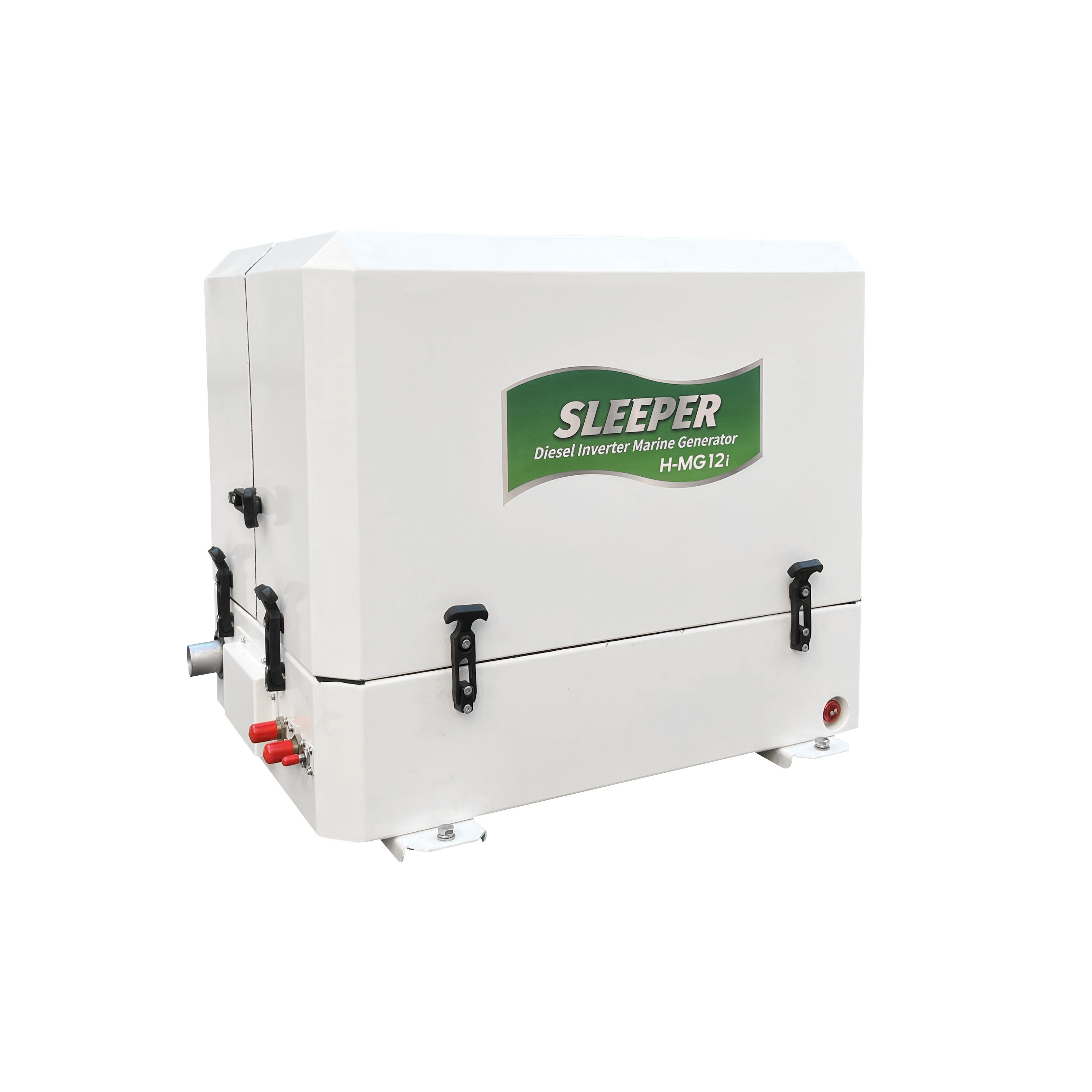

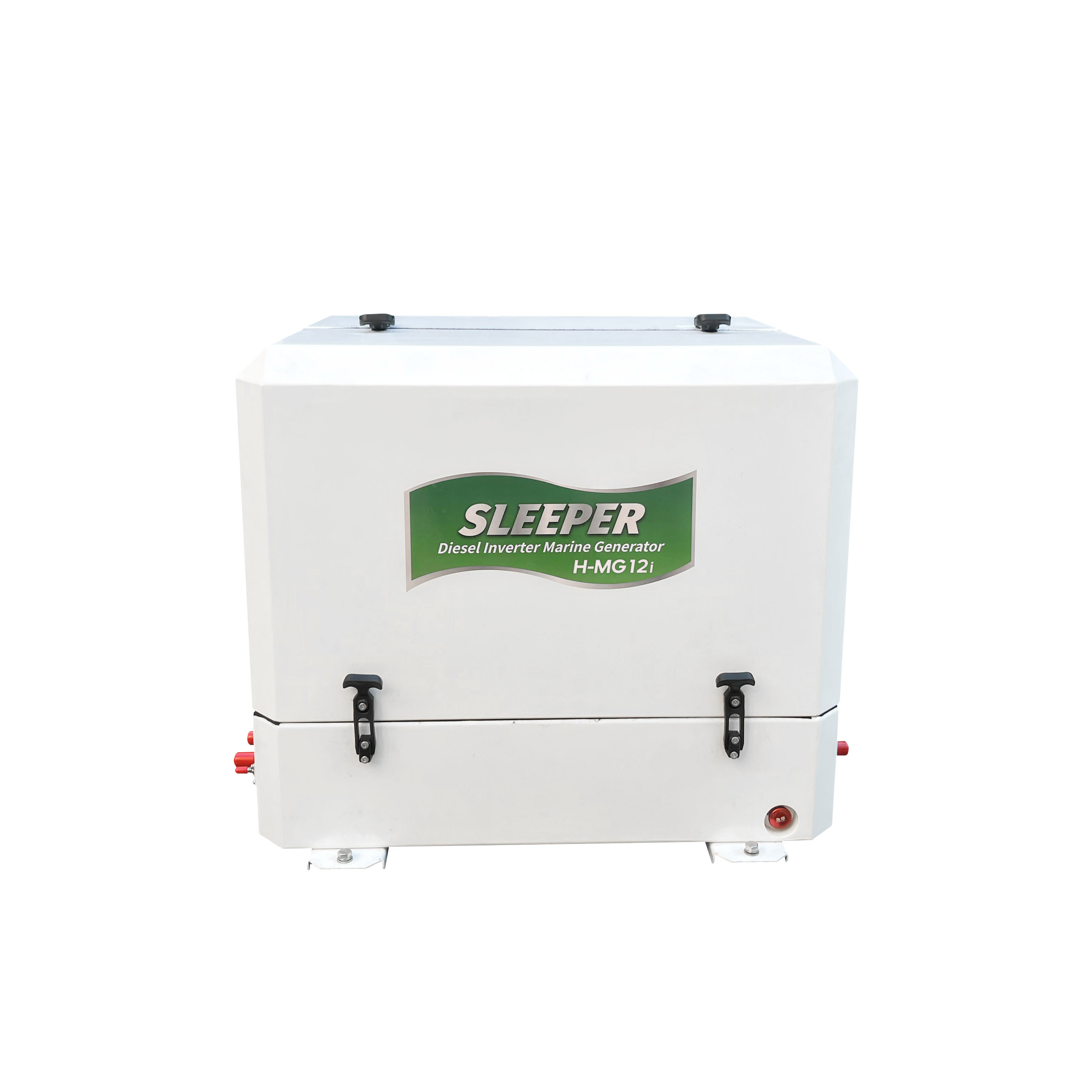

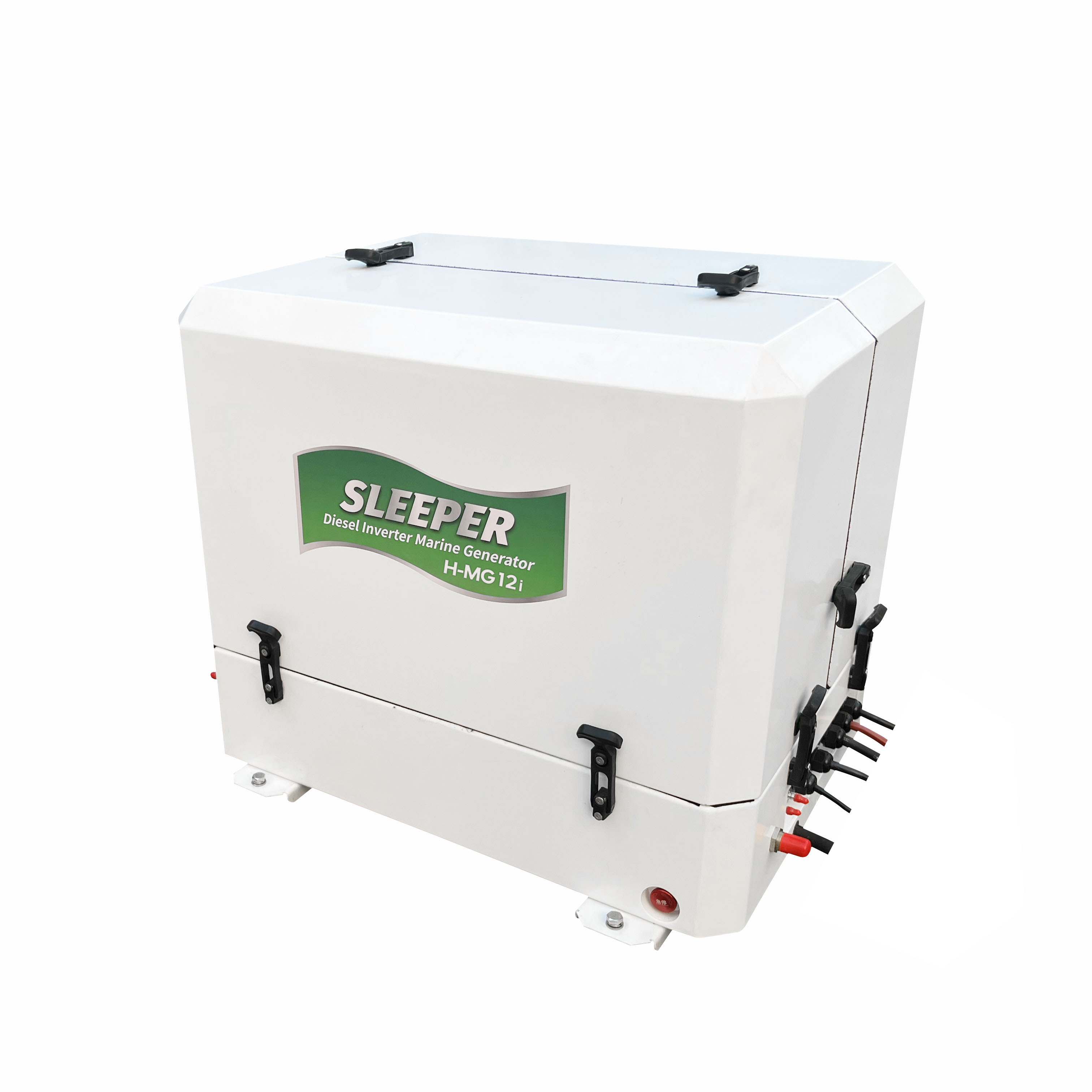

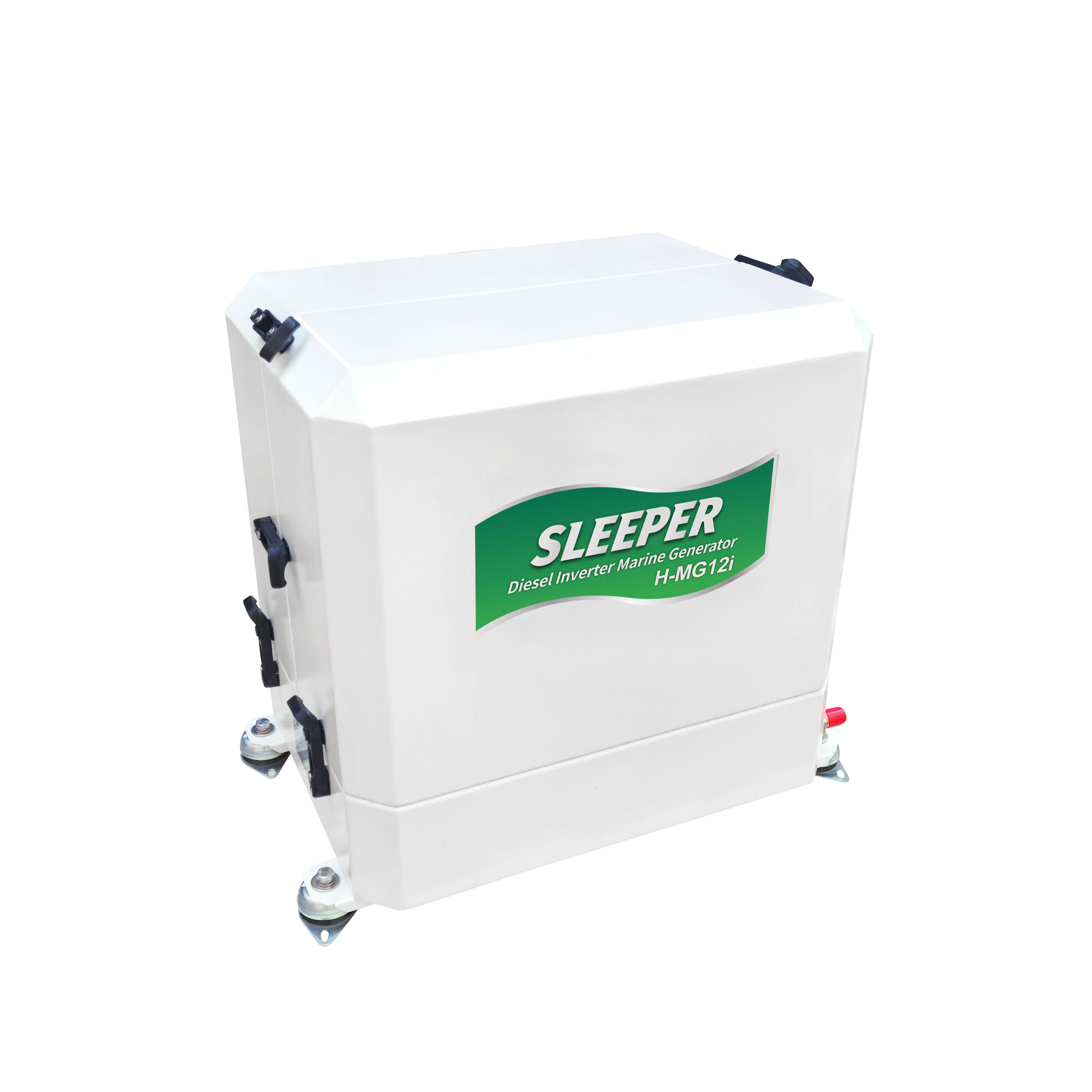

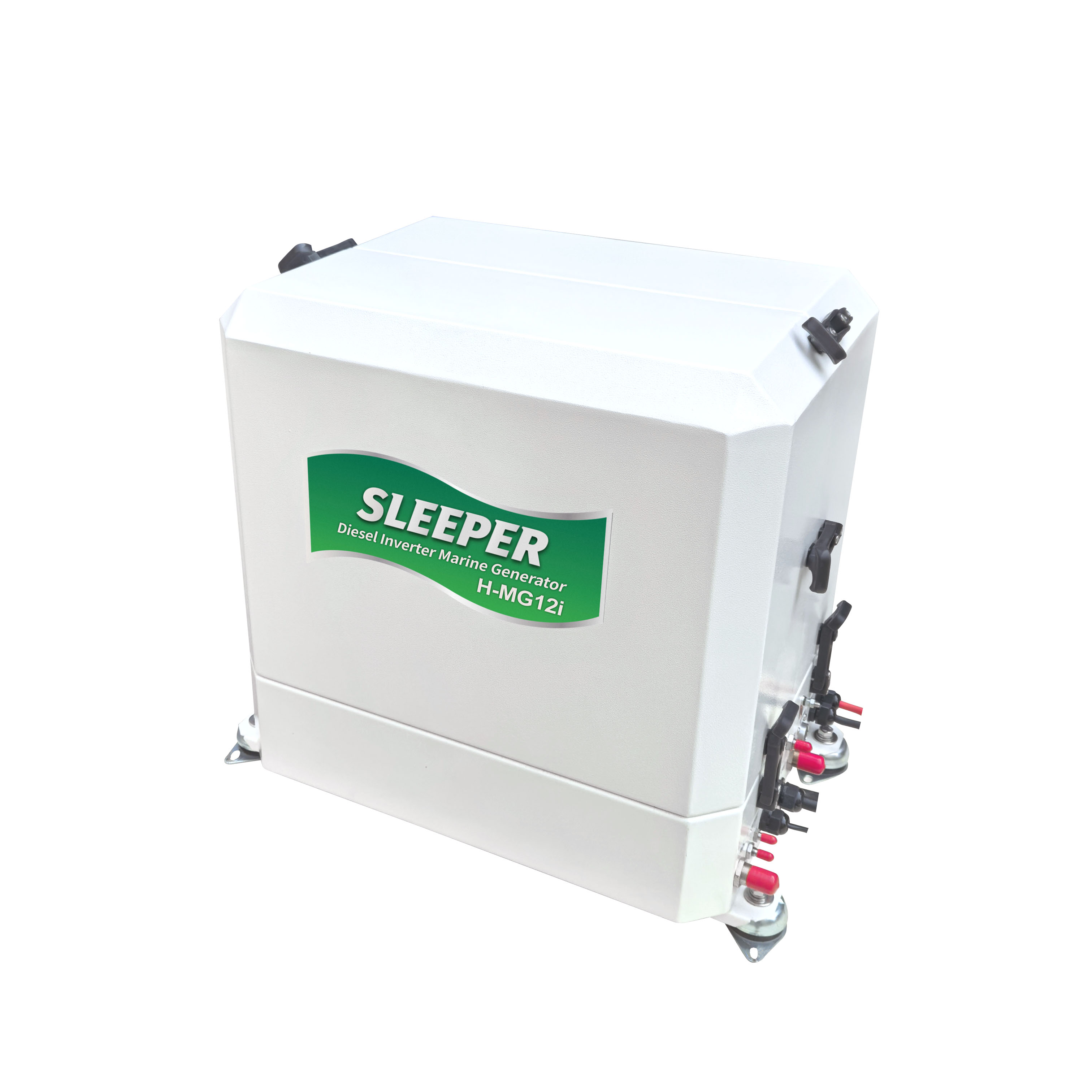

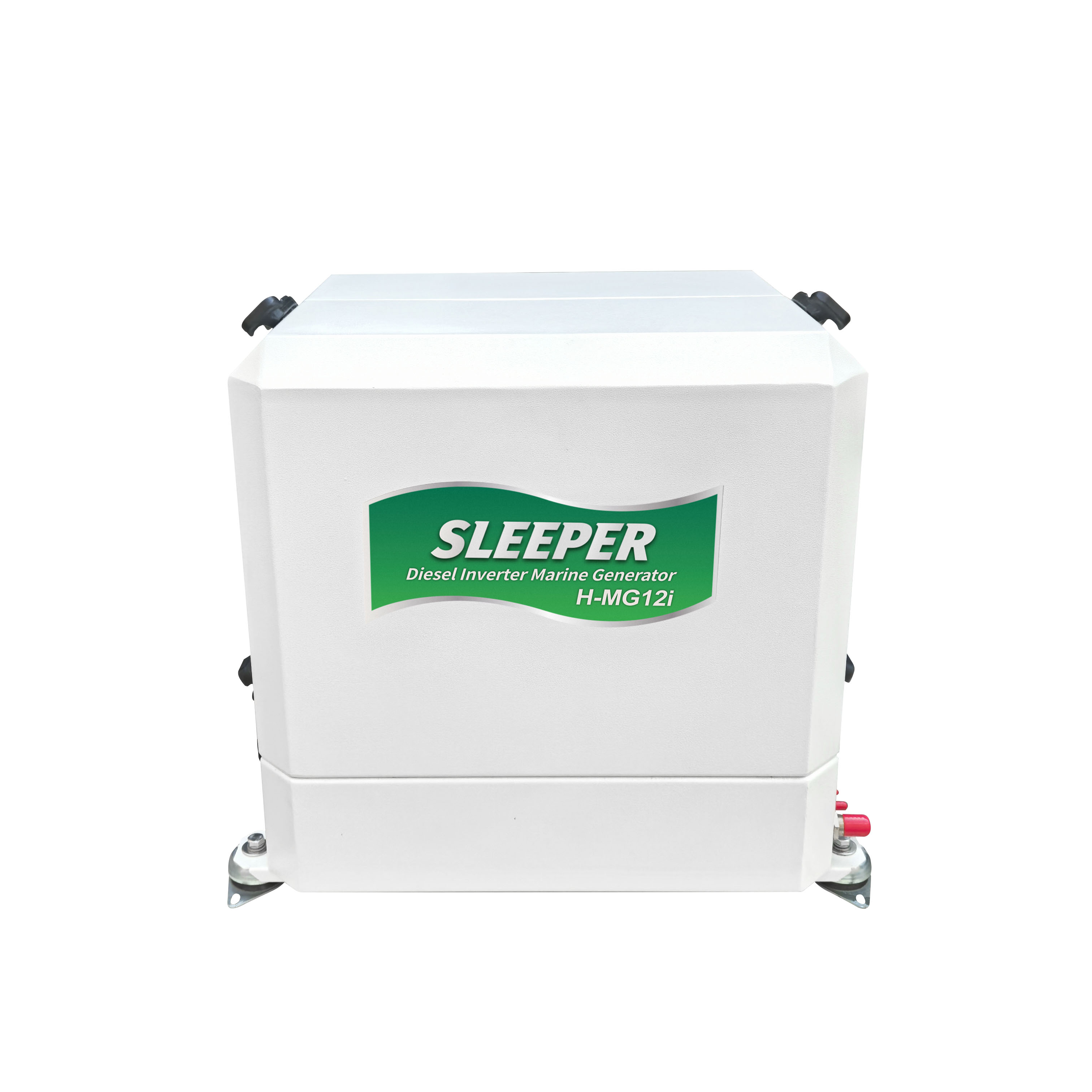

SLEEPER H-MG12i Diesel Inverter Marine Generator
Thanks to the PMG inverter technology, the Sleeper generator H-MG12i is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.
Product Features
l Reliable Kubota 3 cylinder water-cooled diesel engine ensure product reliability
l High efficient water-cooled permanent magnet alternator technology
l Extremely compact size and light weight for installation
l Extremely silent by aluminum composite material cabinet
l Virtually vibration free
l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics
l Inverter technology saves fuel about 30% and environmentally friendly
l Local and remote digital display control panel with highly intelligent multi-function protection
l Parallel technology enables more power and cost saving
SLEEPER H-MG12i Marine Generator Specification
| MAIN SPECIFICATIONS | |
| Model | H-MG12i |
| Nominal voltage(V) | 230 / 120 |
| Frequency(Hz) | 50 / 60 |
| Number of phases | 1 |
| Intermittent power | 10kW / 12.5kVA |
| Continuous power | 9kW / 11.2kVA |
| Noise(dBa/7m) | 51 |
| Rpm range | 2200 - 3000, adjustable |
| Cooling system | Heat exchanger |
| Harmonic distortion | ≤3% |
| Frequency stability | ±0.1% |
| Alternator technology | Water-cooled, Brushless, Permanent Magnet |
| Generator control | PMG Inverter |
| Inverter (with DDC local) | PMGi 12 |
| Control Panel | Digital Display Control（DDC local + DDC remote） |
| DIESEL ENGINE SPECIFICATIONS | |
| Engine model | Kubota D722 |
| Engine power output | 12.4kW / 3000rpm |
| Cylinder | 3 |
| Displacement(cc) | 719 |
| Bore x stroke（mm） | 67 × 68 |
| Consumption（L/hr） | 1.5 - 3.3 |
| Start battery capacity | 12VDC / 80Ah |
| Starter battery charge method/ current | Alternator 12 V /14A |
| Lubricant | At least CF |
| Oil capacity(L) | 3.8 |
| DIMENSIONS & WEIGHT | |
| Cabinet dimensions（LxWxH) | 578 x 445 x 558 mm |
| Cabinet weight | 142 kg |
| Water inlet hose | Ø19mm |
| Exhaust hose | Ø40mm |
| Fuel Hose | Ø 8mm |
| Siphon breaker | Ø19mm |
