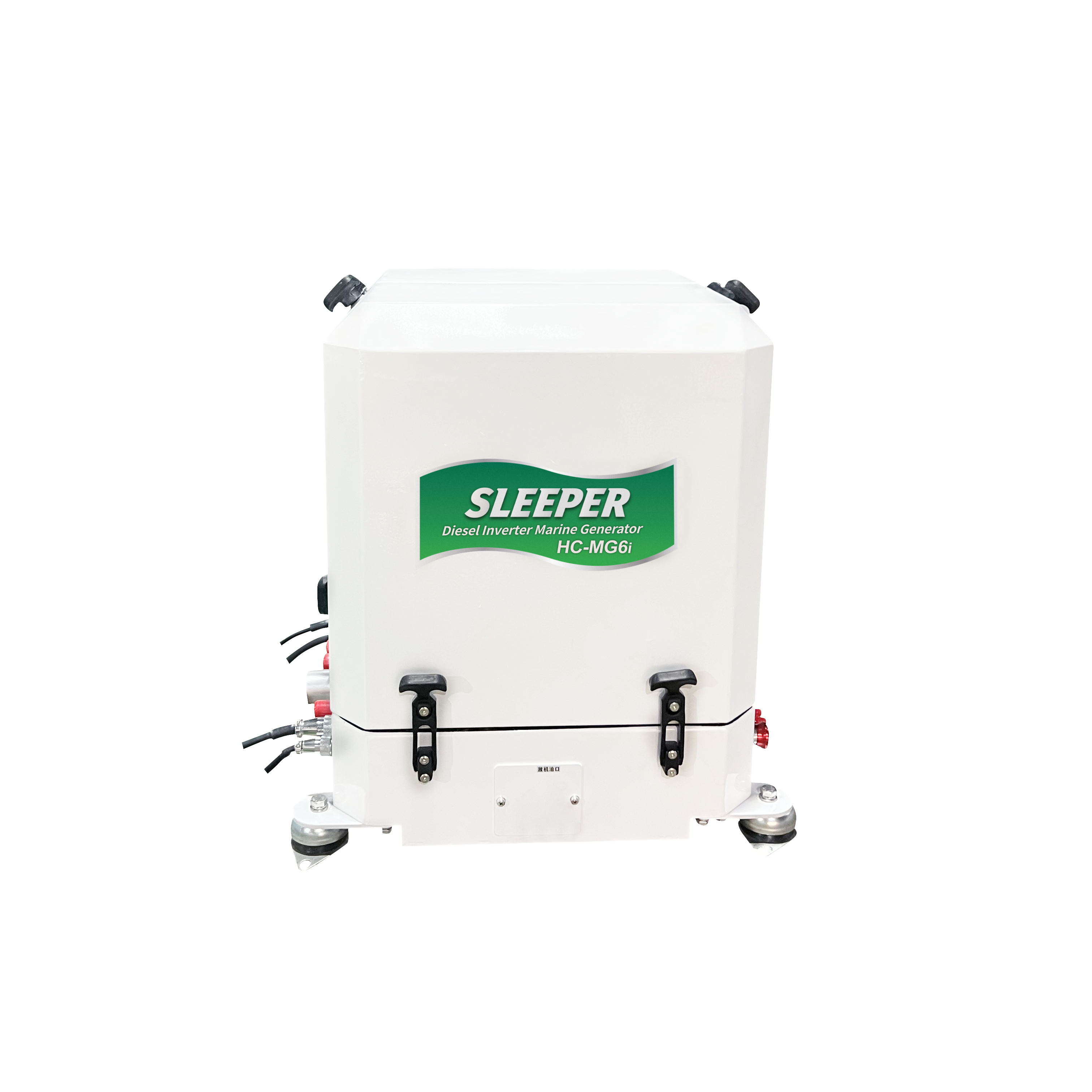

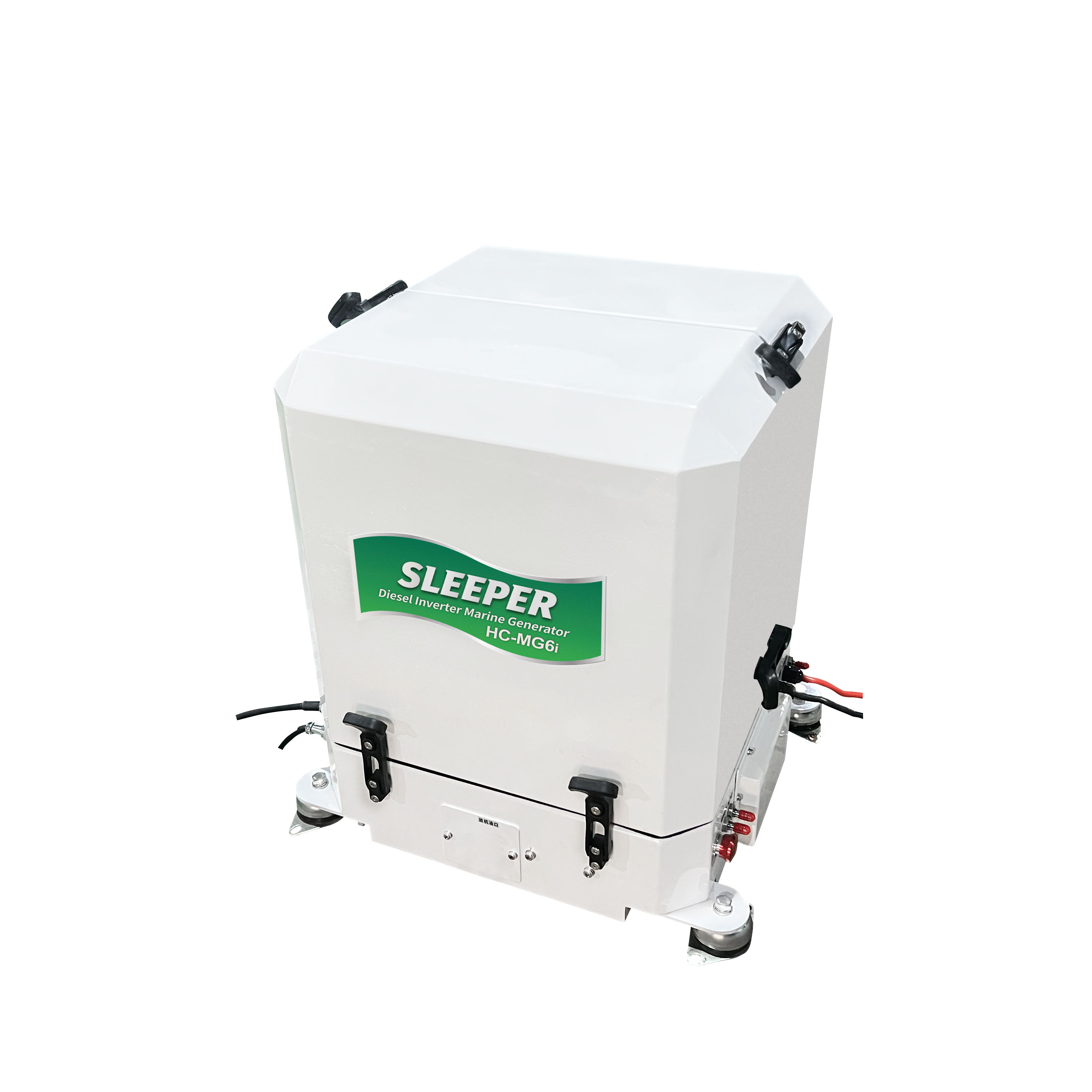

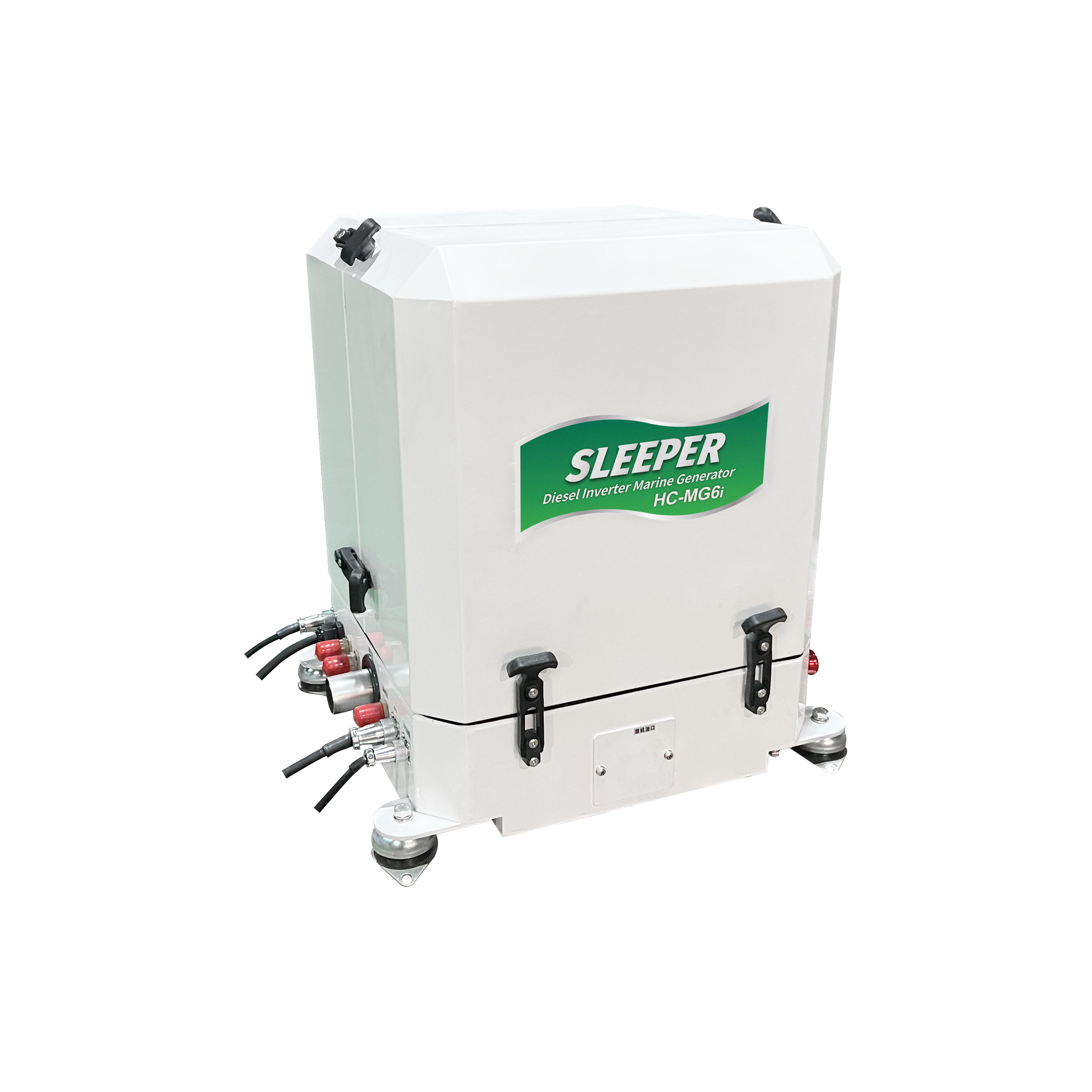

SLEEPER HC-MG6i Diesel Inverter Marine Generator
The Sleeper generator HC-MG6i is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob and battery charging devices. The sleeper generators are fitted with the highly regarded sound insulation and water-cooling. They are specially designed to be light and compact, up to 30% weight and space savings.
Product features
l Reliable Sleeper water-cooled diesel engine ensure product reliability
l Water-cooled permanent magnet alternator
l Extremely Silent - Patented structural design and special materials sound enclosure effectively reduce the noise and vibration
l Small size and light weight is most suitable for marine compact installation
l Environmentally friendly - Inverter technology saves fuel about 30%
l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics

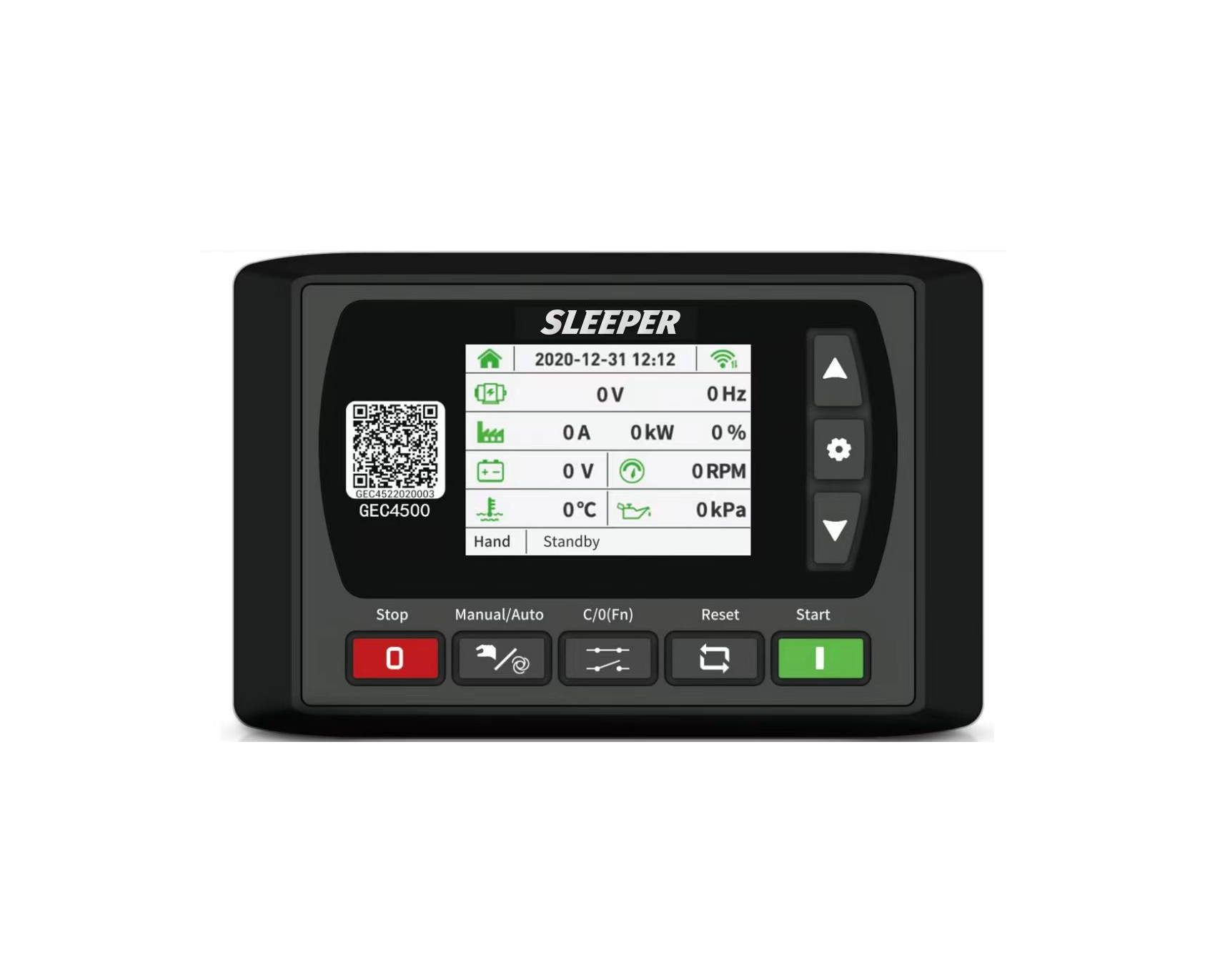

l Easy operation with local and remote 2 digital display control panel and highly intelligent multi-function protection
l Parallel technology enables more power and cost saving
l Convenient maintenance - one sided maintenance services
SLEEPER HC-MG6i Marine Generator Specification
|
MAIN SPECIFICATIONS |
|
|
Model |
HC-MG6i |
|
Nominal voltage(V) |
230 / 120 |
|
Frequency(Hz) |
50 / 60 |
|
Number of phases |
1 |
|
Intermittent power(kW/kVA) |
5.5kW / 6.8kVA |
|
Continuous power(kW/kVA) |
5kW / 6.3kVA |
|
Noise(dBa/7m) |
53 |
|
Rpm range |
2200 - 3000 adjustable |
|
Cooling system |
Heat exchanger |
|
Harmonic distortion |
≤3% |
|
Frequency stability |
±0.1% |
|
Alternator technology |
Permanent Magnet |
|
Generator control |
PMG Inverter |
|
Inverter (with DDC local) |
PMGi 6 |
|
Control Panel |
Digital Display Control（DDC local + DDC remote） |
|
DIESEL ENGINE SPECIFICATIONS |
|
|
Engine model |
SLEEPER SP12 |
|
Engine power output |
8kW / 3000rpm |
|
Cylinder |
1 |
|
Displacement(cc) |
499 |
|
Bore x stroke（mm） |
92 × 75 |
|
Consumption（L/hr） |
1 - 1.5 |
|
Start battery capacity |
12VDC / 120Ah |
|
Starter battery charge method/ current |
Handy charger 12V /7A |
|
Lubricant |
At least CF |
|
Oil capacity(L) |
1.65 |
|
DIMENSIONS & WEIGHT |
|
|
450 x 450 x 558 mm |
|
|
Cabinet weight |
93 kg |
|
Water inlet hose |
|
|
Ø40mm |
|
|
Fuel Hose |
Ø 8mm |
|
Siphon breaker |
Ø19mm |
