Introducing our cutting-edge Energy-Saving 5kW Marine Generator, meticulously engineered to redefine efficiency and reliability for maritime enthusiasts and seafaring adventurers. With a robust 5kW power capacity, this generator effortlessly fuels essential marine systems, ensuring a seamless blend of comfort and functionality for extended journeys. Sail farther with confidence as our Energy-Saving 5kW Marine Generator is optimized for superior fuel efficiency, allowing you to maximize your time on the water while minimizing fuel consumption.Designed to empower your voyage with eco-friendly innovation and seamless power generation, this generator is poised to elevate your boating experience to new horizons.

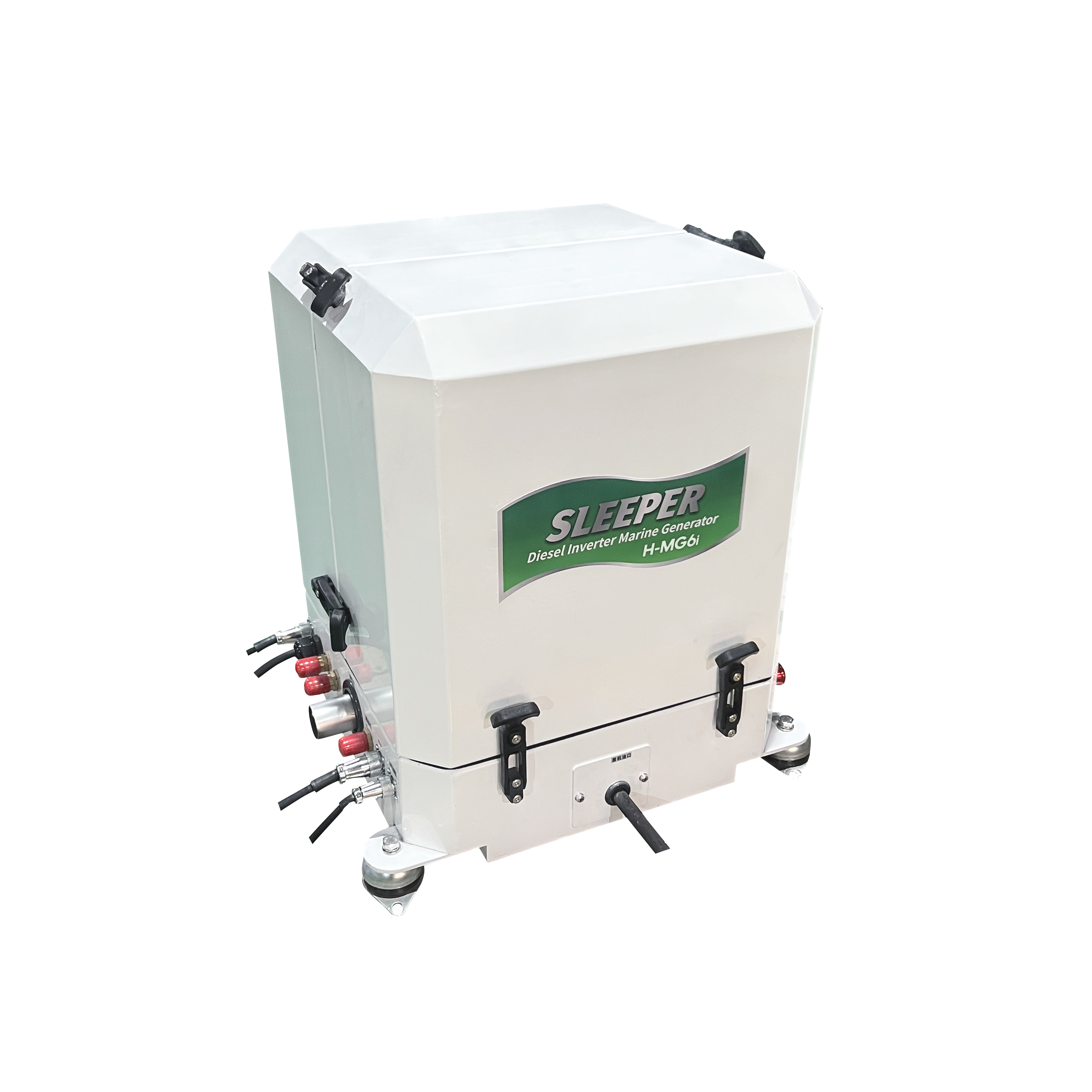

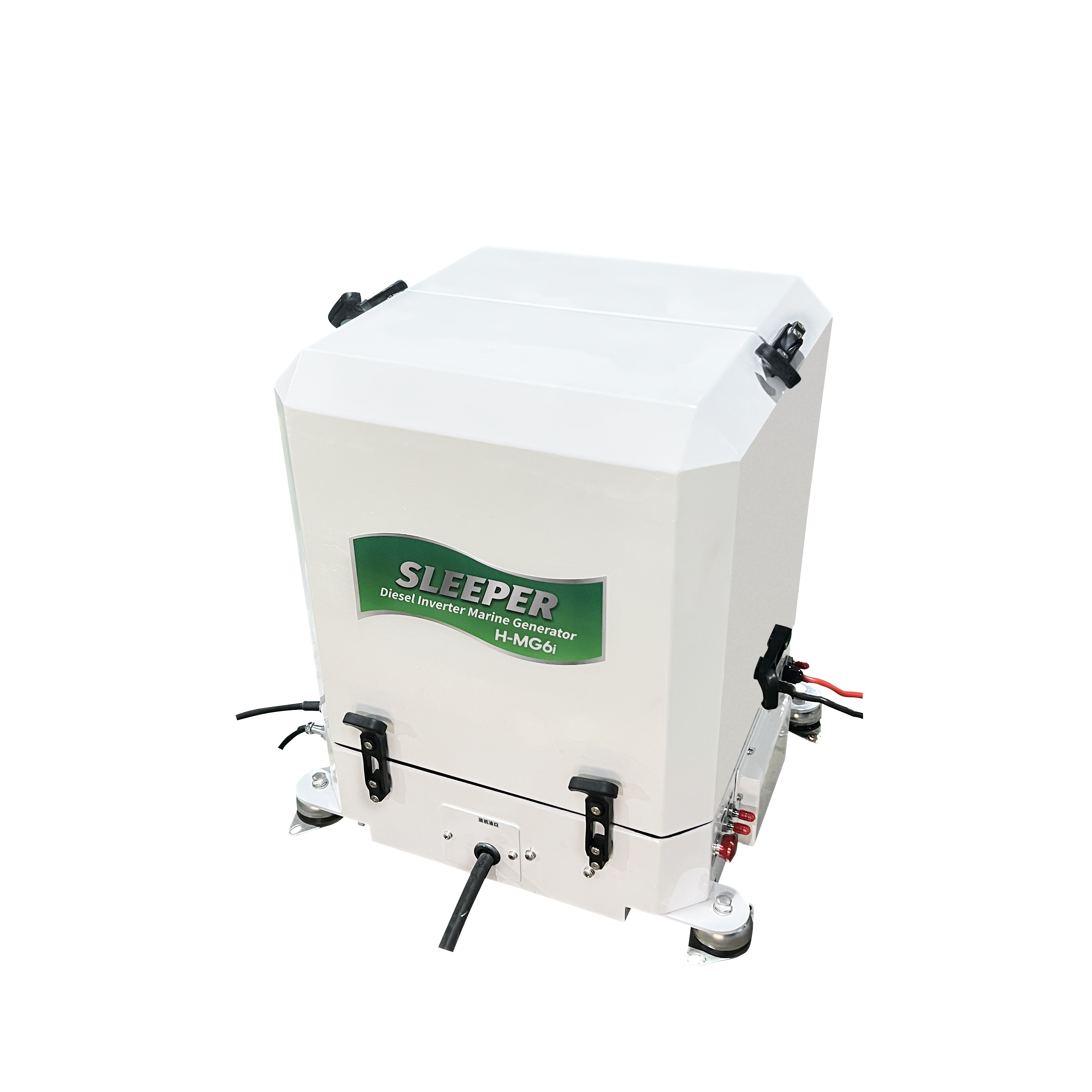

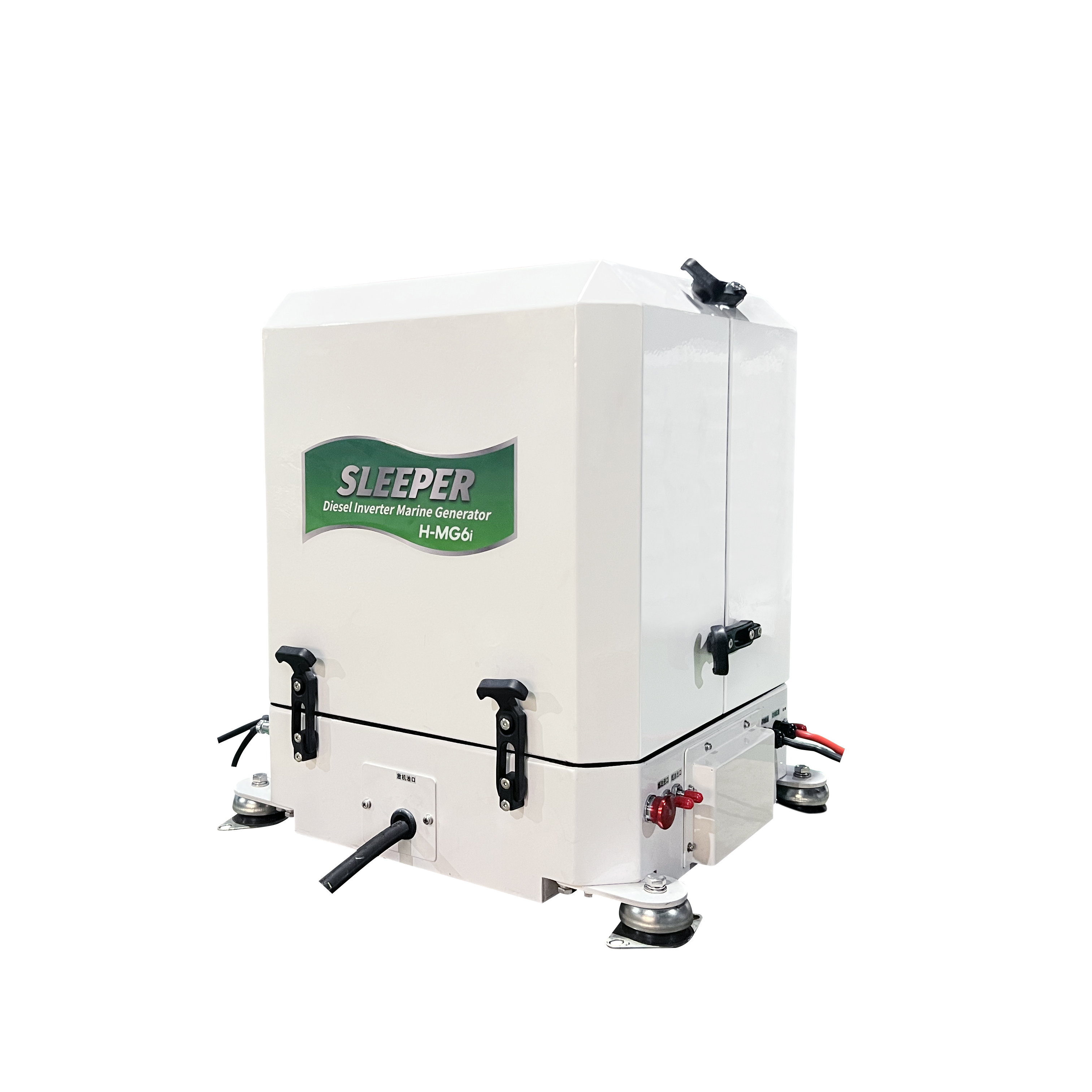

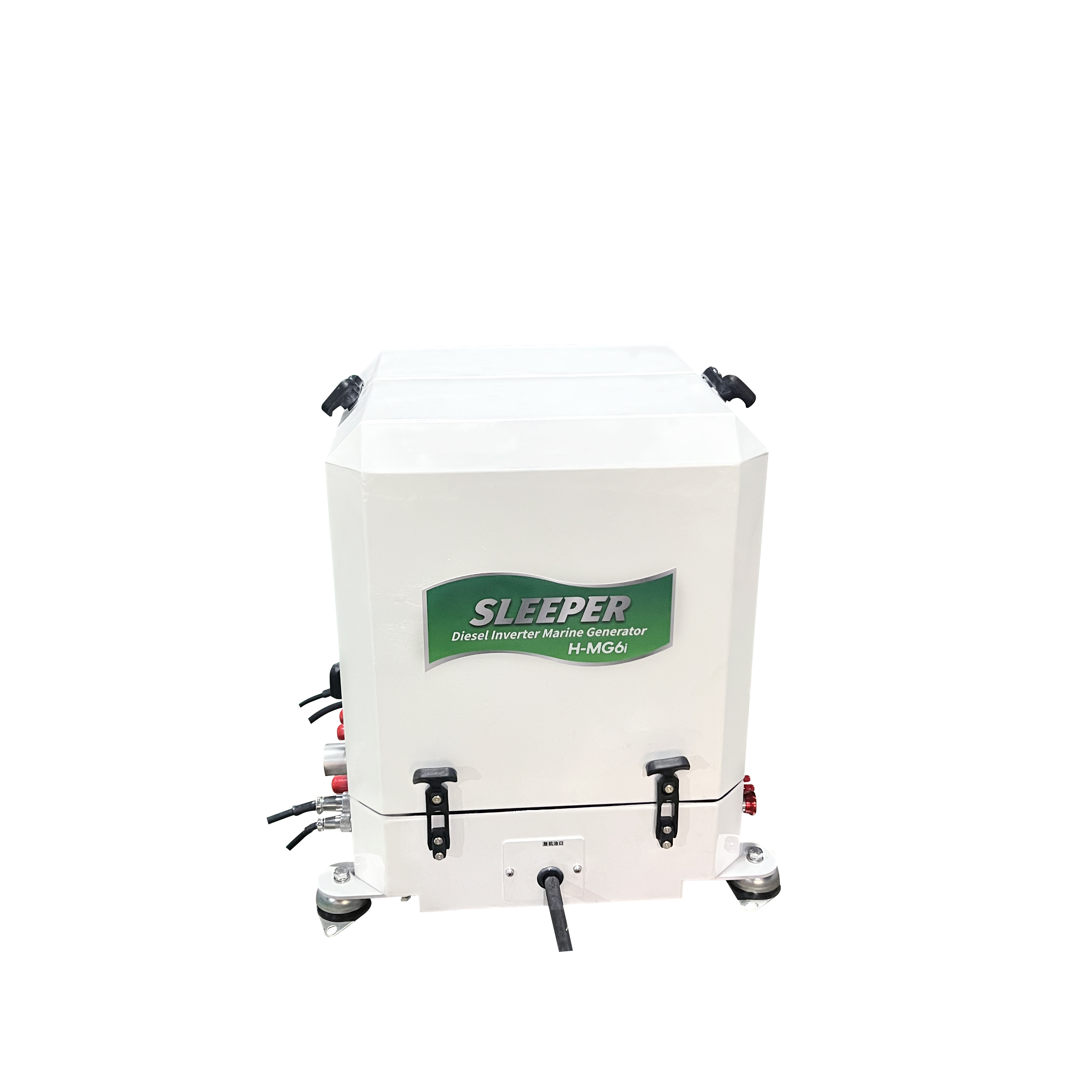

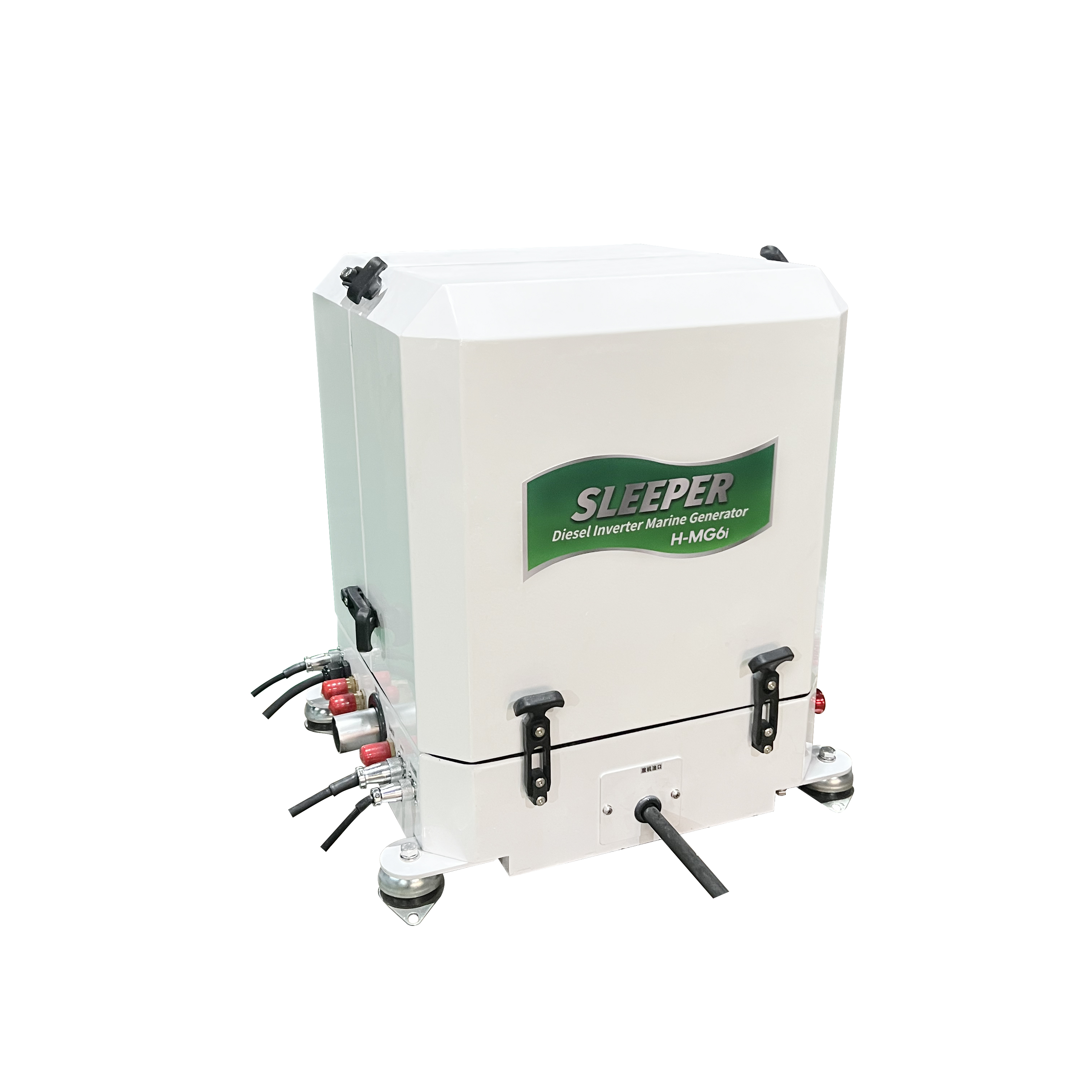

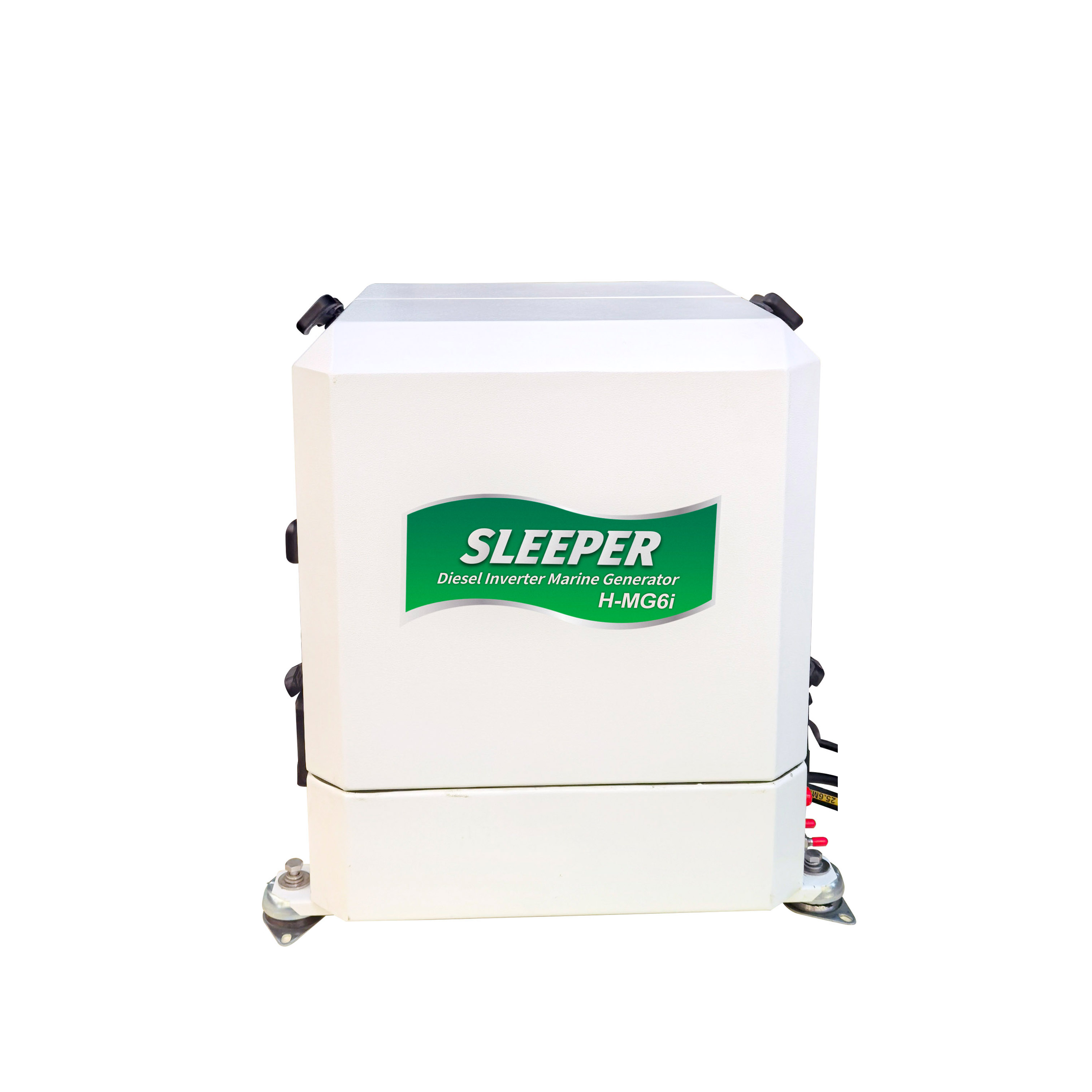

SLEEPER H-MG6i Diesel Inverter Marine Generator
Thanks to the PMG inverter technology, the Sleeper generator H-MG6i is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.
Product Features
l Reliable Kubota 2 cylinder water-cooled diesel engine ensure product reliability
l High efficient water-cooled permanent magnet alternator technology
l Extremely compact size and light weight for installation
l Extremely silent by aluminum composite material cabinet
l Virtually vibration free
l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics
l Inverter technology saves fuel about 30% and environmentally friendly
l Local and remote digital display control panel with highly intelligent multi-function protection
l Parallel technology enables more power and cost saving
SLEEPER H-MG6i Marine Generator Specification
|
MAIN SPECIFICATIONS |
|
|
Model |
H-MG6i |
|
Nominal voltage(V) |
230 / 120 |
|
Frequency(Hz) |
50 / 60 |
|
Number of phases |
1 |
|
Intermittent power |
5.5kW / 6.8kVA |
|
Continuous power |
5kW / 6.3kVA |
|
Noise(dBa/7m) |
51 |
|
Rpm range |
2200 - 3000, adjustable |
|
Cooling system |
Heat exchanger |
|
Harmonic distortion |
≤3% |
|
Frequency stability |
±0.1% |
|
Alternator technology |
Water-cooled, Brushless, Permanent Magnet |
|
Generator control |
PMG Inverter |
|
Inverter (with DDC local) |
PMGi 6 |
|
Control Panel |
Digital Display Control（DDC local + DDC remote） |
|
DIESEL ENGINE SPECIFICATIONS |
|
|
Engine model |
Kubota Z482 |
|
Engine power output |
8.3kW / 3000rpm |
|
Cylinder |
2 |
|
Displacement(cc) |
479 |
|
Bore x stroke（mm） |
67 × 68 |
|
Fuel consumption（L/hr） |
1.5 - 2.1 |
|
Start battery capacity |
12VDC / 80Ah |
|
Starter battery charge method/ current |
Alternator 12V/14A |
|
Lubricant |
At least CF |
|
Oil capacity(L) |
2.5 |
|
DIMENSIONS & WEIGHT |
|
|
Dimensions（LxWxH) |
478 x 445 x 558 mm |
|
Dry Weight |
110 kg |
|
Water inlet hose |
Ø19mm |
|
Exhaust hose |
Ø40mm |
|
Fuel Hose |
Ø 8mm |
|
Siphon breaker |
Ø19mm |
